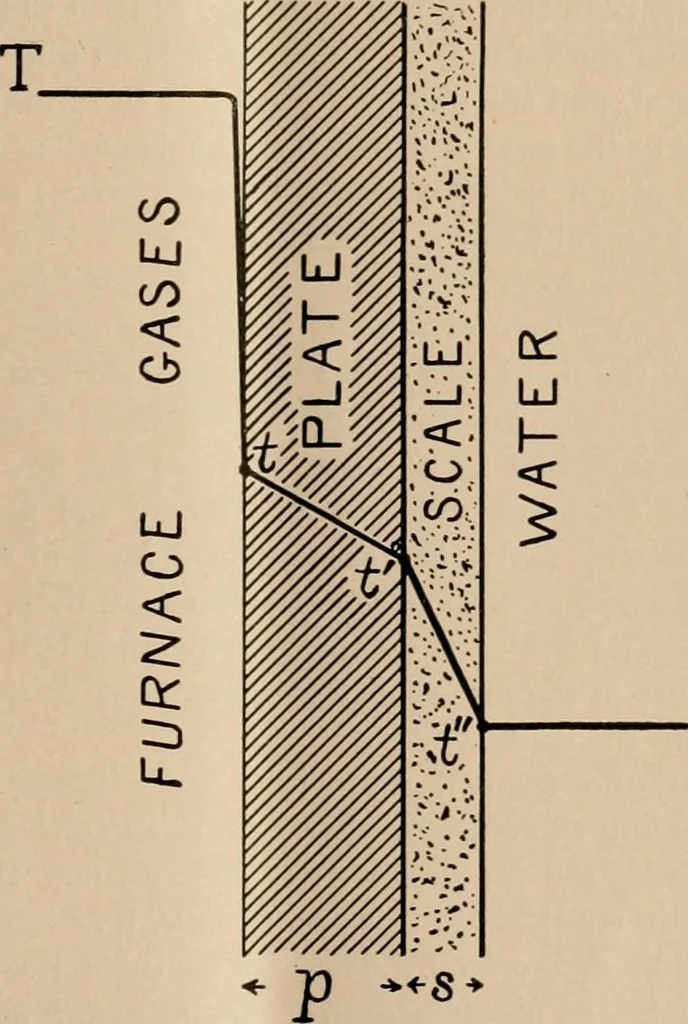

xt, and the proposition in question is proved. The distribution in temperature in such a plate may be represented by means of theartifice suggested in Fig. 3. A scale of temperatures is here supposed to be drawn onthe surface of the plate, and the temperature at any depth within the plate is… … o- Fig. 4. — Diagram showing the Distribution of Temperature in the Plate and the Scale Layer. In the same way the point e represents the fact that at | of the depth of the plate (stillbeginning at the fire side) the metal has a temperature of 350°. A single line, at cd ef,will then represent the…
