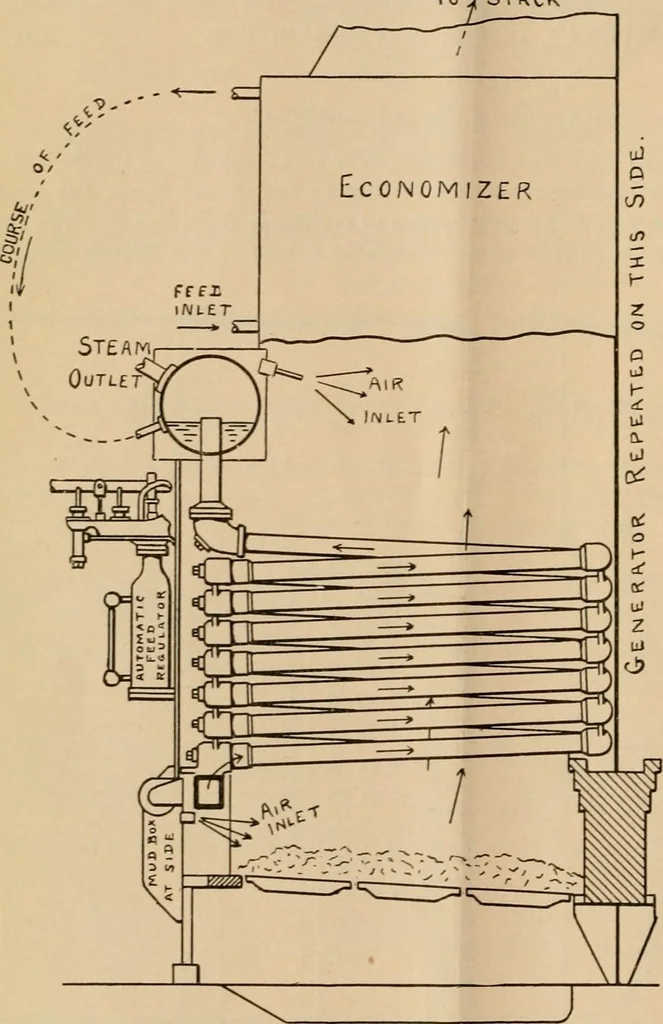

The Bellevilleboiler is shown in Fig. 2. The following description of this boiler is practically inMr. Thwaites words: In the most advanced, or economizer, type of Bellevilleboiler, the generating tubes are only slightly inclined from the horizontal (2£°),and are made of solid drawn steel. Twenty… … •Fig. 2. — The Belleville Boilek. 1902.] THE LOCOMOTIVE. 16; for a continuous passage from bottom to top for water and steam. Each tube-group orelement is connected at its lower end to a water chamber, and the top of each elementis connected to the steam-and-water drum, this connection in every…
