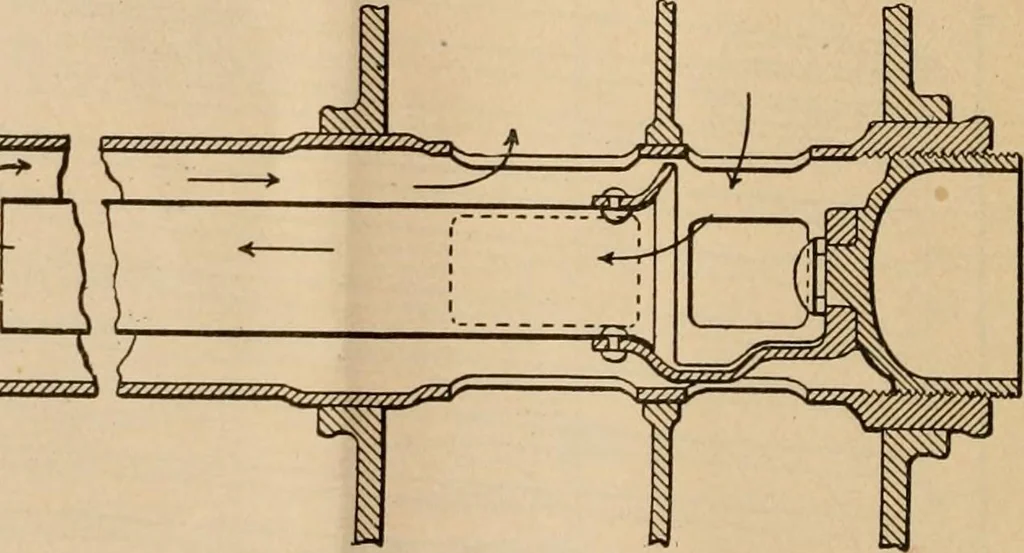

upper drum. These are supposed to be separated here, and, to assist the sepa-ration, an ingenious system of baffle plates is provided, which we have not shown in theengraving. An economizer is placed in the stack above the boiler, the construction ofthe economizer being similar to that of the… … ...,.,,., i ■■■|-S3 >.,v.v/.v.-^- Fig. 4. — Detail View op Niclausse Tube. type, and are set at an angle of six degrees to the horizontal. The front header isdivided by a vertical partition, as will be seen, and the water in the drum passes downon the front side of the partition, through the…
