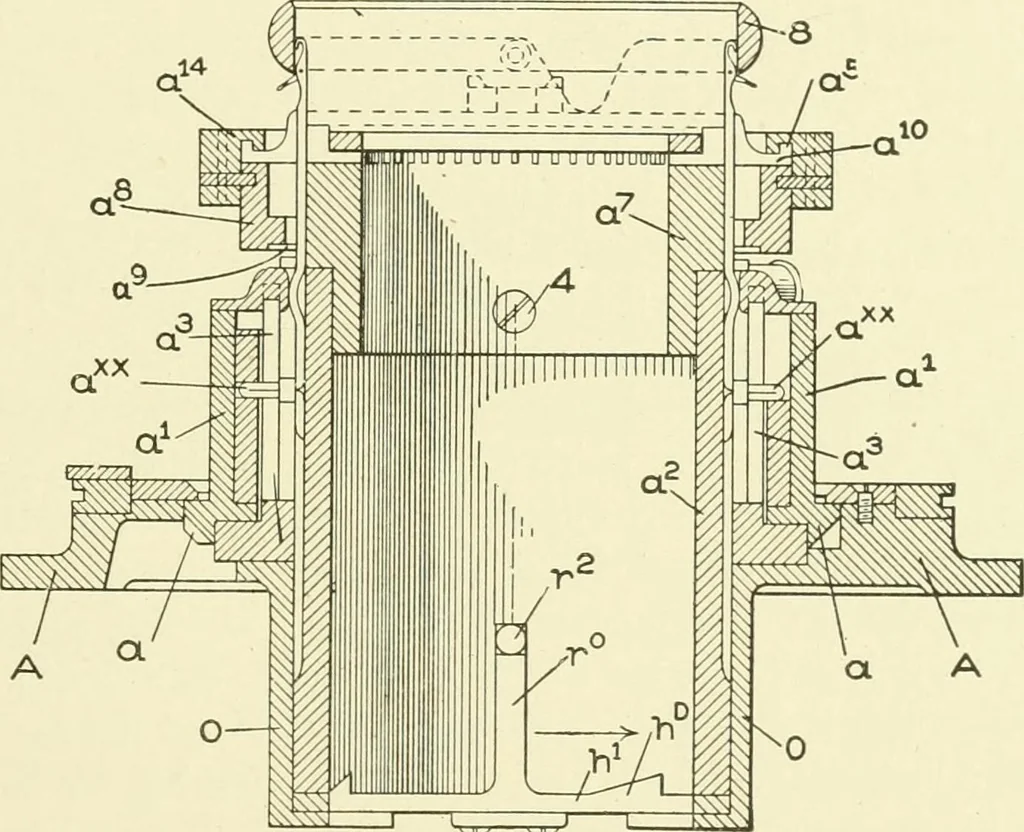

the next needle. The stitch gauge is on the frontof the machine and the stitch may readily be changed in any part ofthe stocking without interfering with any of the other working parts. The Acme is of that type of automatics in which the quill ring ortransfer cup is employed for making socks or… … Fig. 136. View of Cylinder Showing Latch-Guard Ring. A Skeleton Cylinder (Fig. 135 and a^ in Figs. 134 and 136) isplaced between the needle cylinder and the cam cylinder, and fastenedto the bed plate, or needle cylinder socket, of the machine. The barsor walls a of the skeleton cylinder line vv^ith…
