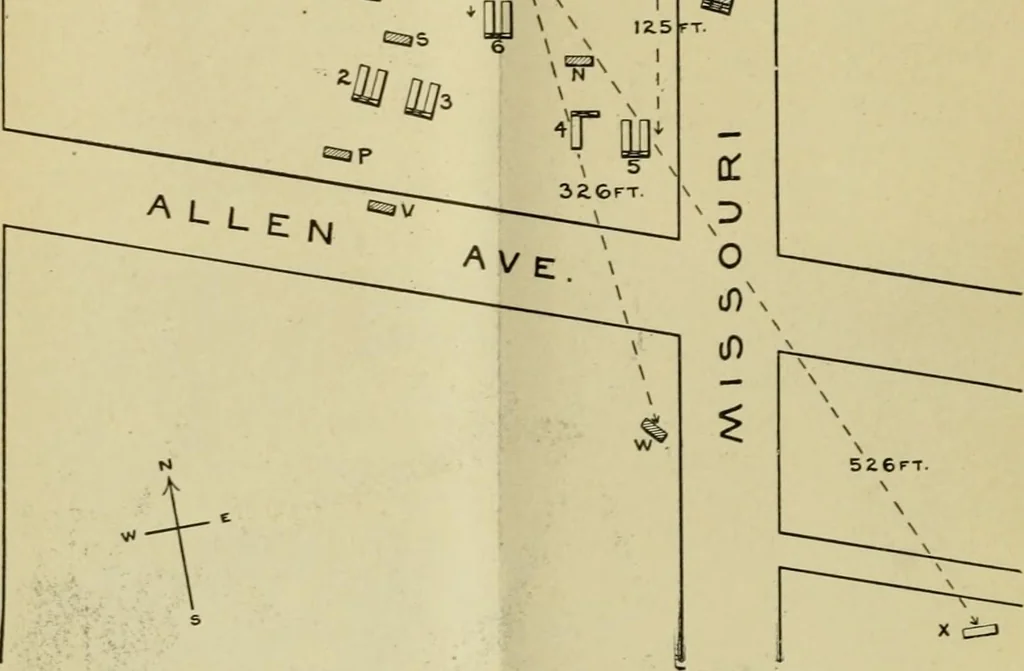

A V STACK Q)[&\oTlPf^ilfi-.»C^R 60r,. jk Id>< … Fig. 2. — Showing the Distribution of the Fragments. Cross steam drums were also provided, each of which was 7 ft. long by 30 in. indiameter, and from the top of each steam drum a 6 in. steam pipe was led away.A spring pop safety-valve was also located on each steam drum. The waterlegs were 3 ft. 6…
