Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 49

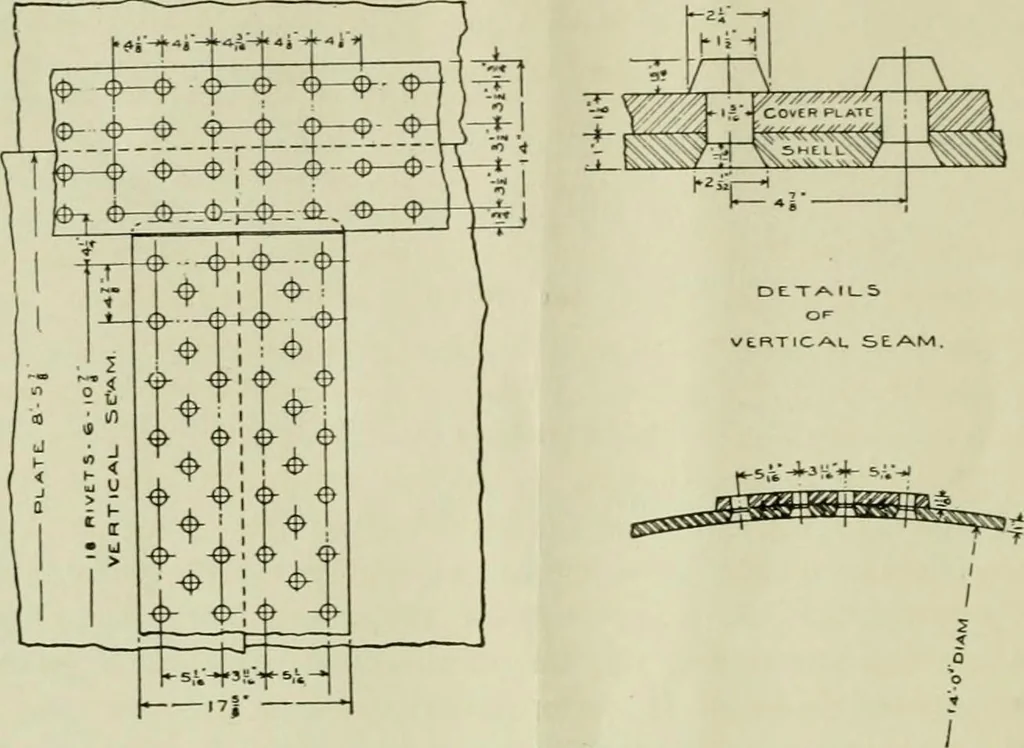

osphorus 0.037 Manganese 0.420 Sulphur 0.020 Comparisons with the specifications of the American Society for TestingMaterials shows that the shell sheet falls within their recommendations, whilethe cover plate fulfills the specifications except in the matter of carbon, whichis somewhat in excess —… … Fis. 2. Physical Tests of Material from Shell of Exploded Digester. Physical propertiesUltimate strength. Lbs. per sq. inch. Elastic limit. Lbs. per sq. inch Yield point. Lbs. per sq. inch Elongation in 8 inches Reduction in area Modulus of elasticity Specimen 1 Specimen 2 Specimen 3 55.700 55.600…
Locomotives · Steam-boiler explosions
