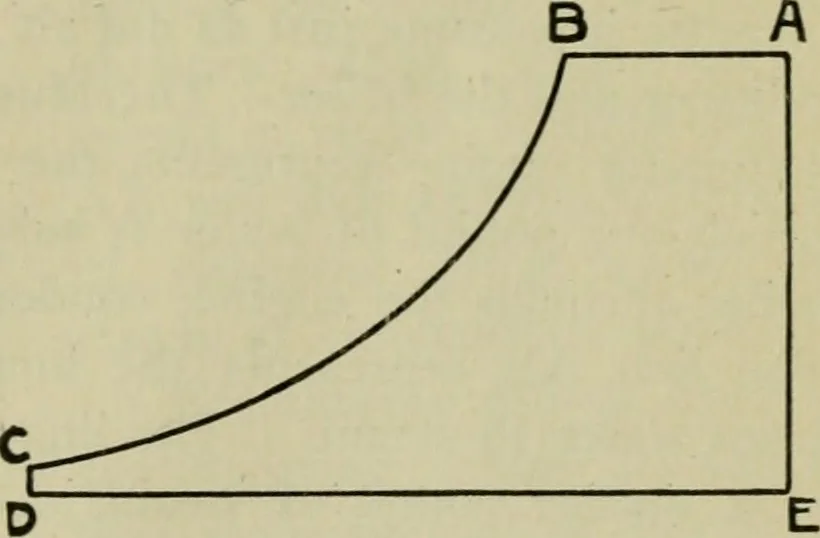

sure will be. Furthermore, inFig. I w^e had release taking place slightly before the end of thestroke of the piston. In this case, as will be noticed, we do not openthe exhaust valve until the completion of the forward piston stroke.The pressure in the cylinder then drops approximately to that in… … Fig. 3. 238 THE LOCOMOTIVE. [October, In this we have differed a Httle from the actual engine of Fig. i inwhich some of the steam was retained in the cylinder for the cushion-ing effect. The zveight of steam so retained, however, is compara-tively small and the difference between the real and this…
