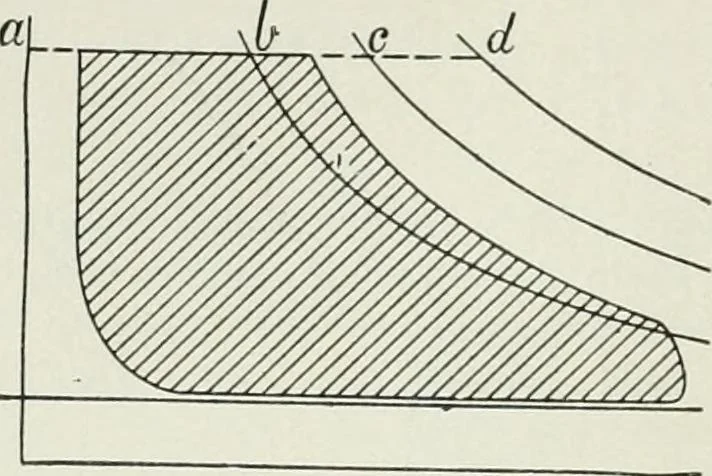

team required per Stroke.—With a constant speed and power of engine, and a constant area of 154 STEAM-ENGINE THEORY AND PRACTICE. indicator diagram, but a varying degree of superheat in the steam,the relative weights of steam passing through the cylinder per stroke,may be shown by placing the… … A a f m V V \ \ r-^^^^y^^ (1 e____i.fc__> 0 Fig. 171. Fig. 172. If the steam supplied to the engine be sufficiently superheated torender the steam superheated at cut-off, then the weight of steam now required per stroke = — of the weight required when no super-heat was used. When some…
