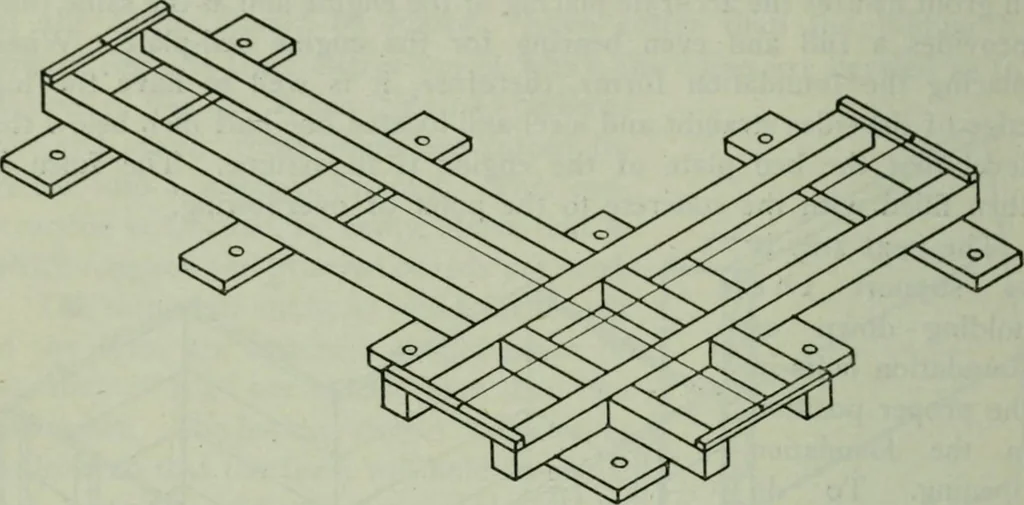

170 THE LOCOMOTIVE. [April, extend beyond the nuts, the protruding ends may readily be removedwith a hack-saw. The holding-down bolts should not be rigidly fastened in thefoundation because, for one reason, the bolt holes in the bed-plate … Fig. 7. casting may not agree in position with the design. Then too, thereis always the possibility of error in the layout of the template. Theengine, after being placed on the foundation and located by fixedfoundation bolts, may not line up with the machinery it is to drive,even though the…
