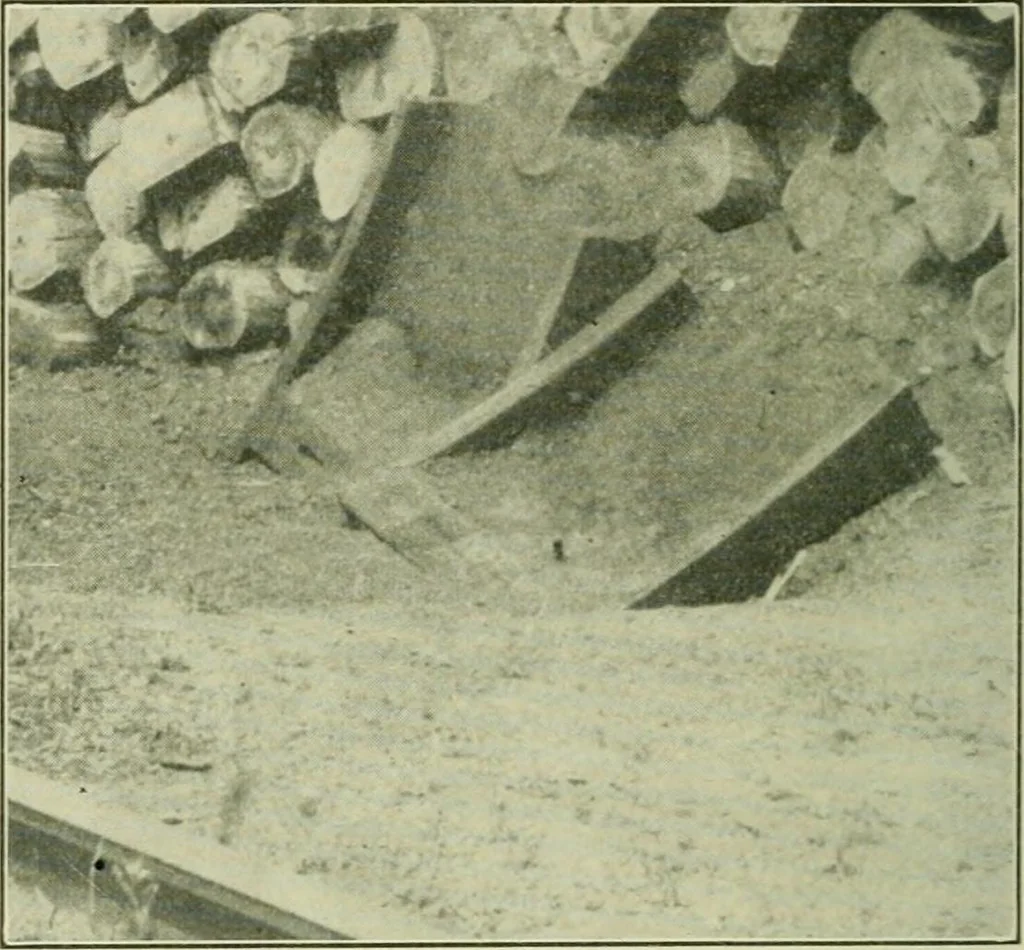

way of theGrand Truck Railway approximately 800 feet east of the plant; and itis interesting to note that these portions of the two wheels are stilljoined by a small bolt, which would indicate that the wheels failedsimultaneously. It is also to be noted that the flange joints shown arestill intact.… … Fig. 3. 1927.] THE LOCOMOTIVE. 133 Range = — sin 2 (angle of elevation) where v = rim speed in ft. per second,g = 322range = horizontal distance travelled by flying piece, ft. In using this formula the angle of elevation is assumed to be 45°,that is, the angle that will give greatest range or…
