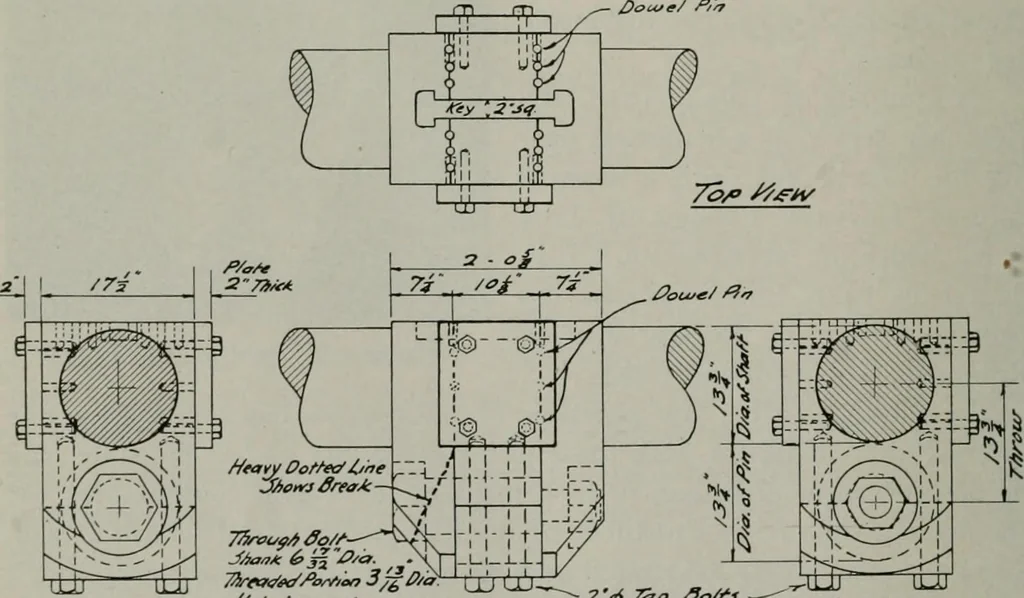

i-m. thick andi7/^-in. wide, except at the crankpin ends where the webs were cham-fered. The pins, which were hollow, were 13^-in. in diameter and103^-in. long between the webs. Although a new shaft was ordered promptly, at this writing it hasnot been obtained. The engine manufacturer did not have… … ^~^4i^ /fWa l//eky 2^ 7a/j 3o//-j /yfcs y/stv TJ^e ^trc/t/s //lejafne - o/>/>os//^At7/7ey Sketches shozving method used in making a temporary repair to a largeshaft for a 3,000 hp Diesel engine. ^941 THE LOCOMOTIVE 249 with the sixth cyhnder cut out. A temporary repair was accomplishedby…
