Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 180

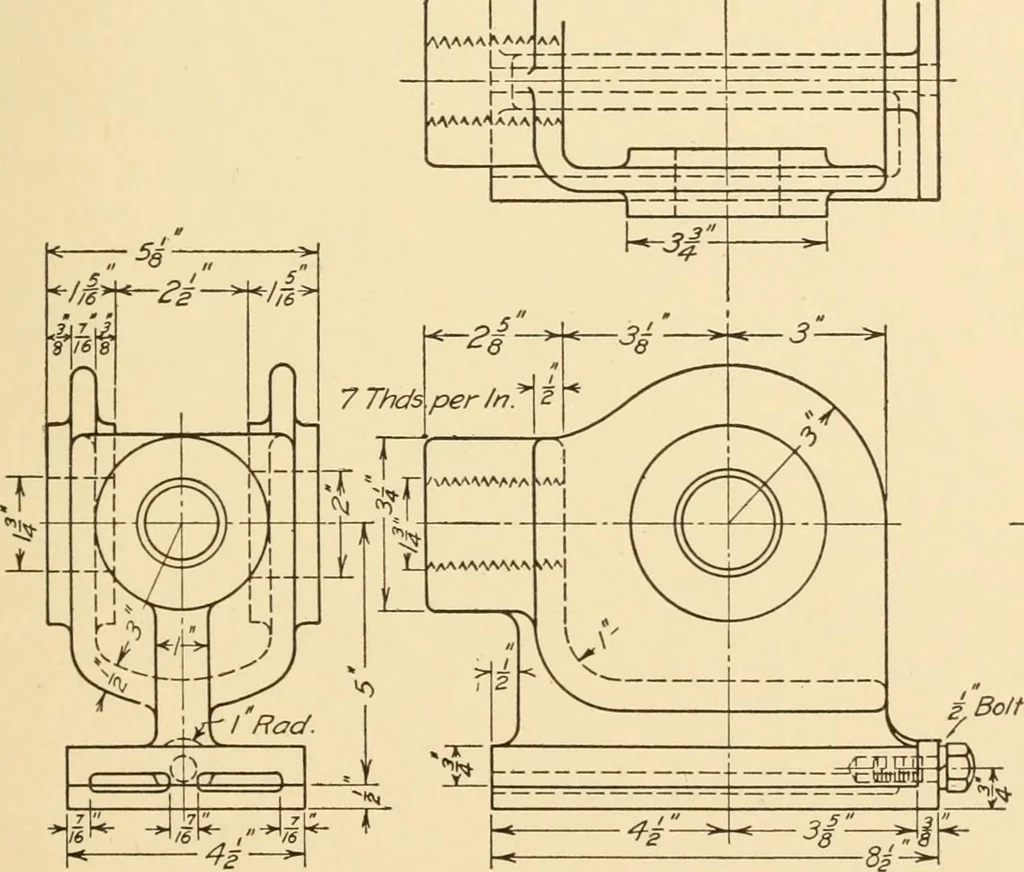

ribs. Piston rings V2 wide and V4 thick. Obtain dimensionsd, A, B, and C from diagram of Fig. 279. It will be necessary to provide a hole fromeach section of the piston to allow for support of cores. These holes can be tappedand closed with pipe plugs. There should be two shallow tapped holes in… … Fig. 281. Prob. 88. 169 170 MACHINE DRAWING PROB. 85.—Make a complete two view working drawing of a steam piston asdescribed for Prob. 86 but diameter of cylinder = 14 and piston rings Vs wide andV2 thick. Divide hollow part of piston into six equal sections. Refer to Chapter V.
Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
