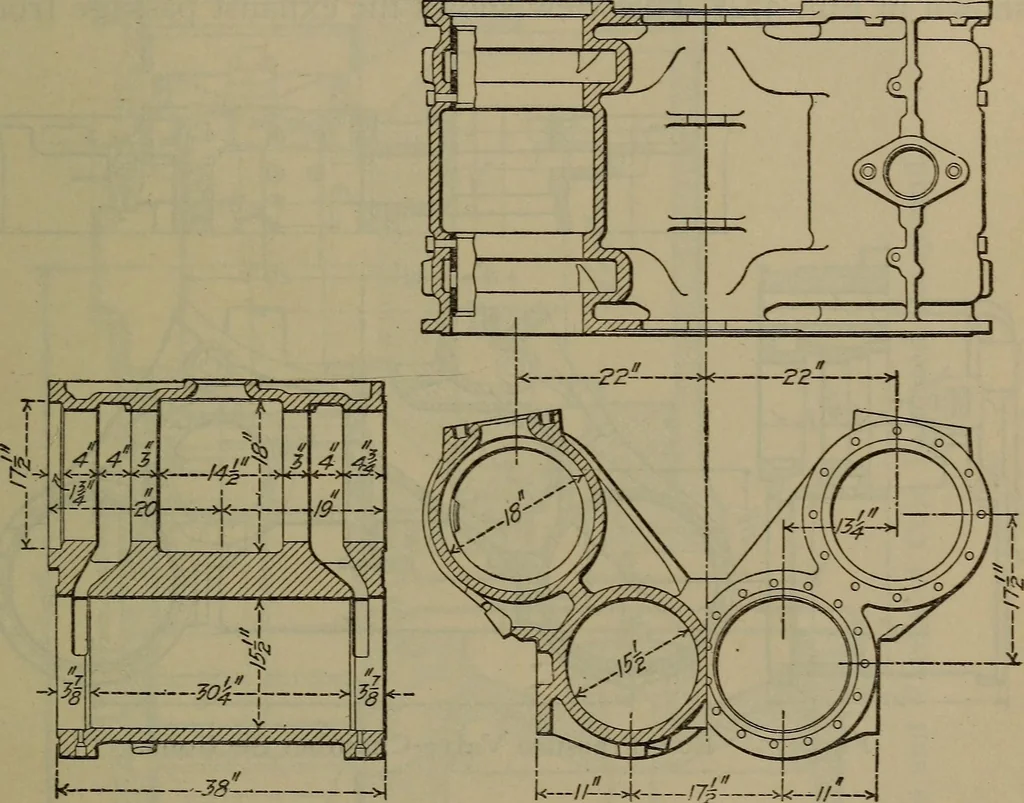

COLE BALANCED COMPOUND. 561 The H. P. cylinders and the H. P. section of the piston-valvechambers are in one casting. (Fig. 372.) On top of the valvechamber is the boss in which is seated the forward end of theelbow pipe (previously mentioned). The cylinder-casting sidesare faced off to the exact… … Fig. 372. High-Pressure Valve-Chamber Sections. frame extensions. The H. P. valve chambers are in line withthose of the L. P. cylinders; intermediate thimble castingsand packing glands being inserted between the two form acontinuous valve chamber common to both H. P. and L. P.cylinders, thus…
