Machinery and processes of the industrial arts, and apparatus of the exact sciences (1869)
Barnard, Frederick A. P. (Frederick Augustus Porter), 1809-1889 · Washington, Govt. print. off. · leaf 132

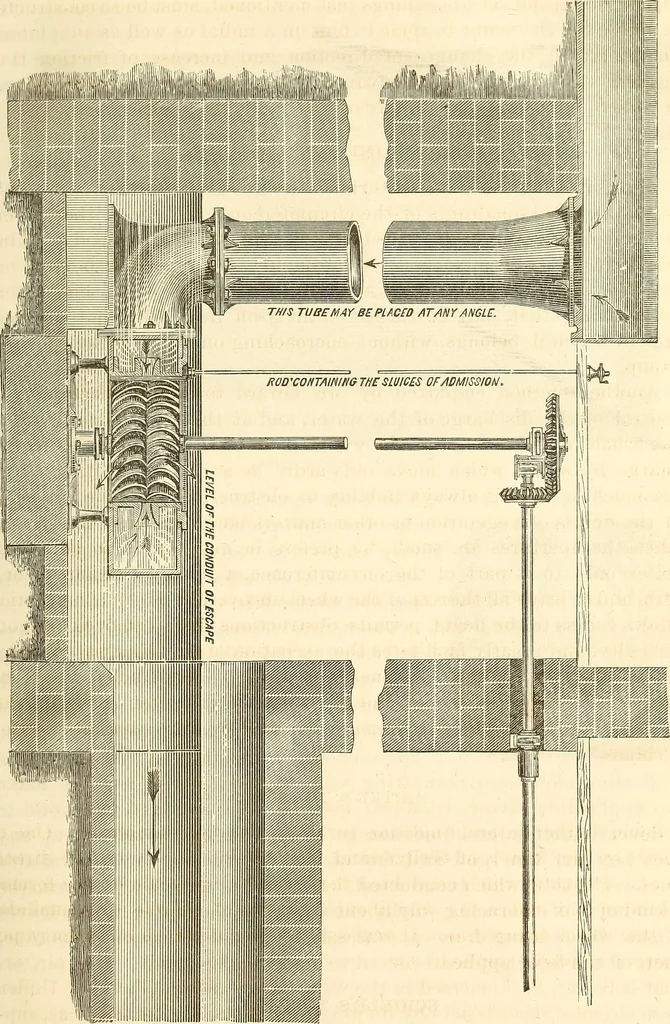

, of the force applied. schieles turbine. Another, exhibited by the North Moor Foundry Company of England.the invention of Mr. Schiele, possesses the great merit of extreme simp-licity of construction, of entire accessibility at all times, and of utilizing as HYDRAULIC MOTORS SCHIELE7S TURBINE. 113… … Schieles Turbine. directrix for the water but the tube of supply. Its construction will beunderstood by referring to the figures. It is enclosed in a cylindrical boxwhich is open both above and below, and which serves only to guide the 116 PAEIS UNIVERSAL EXPOSITION. water as it enters by the…
Machinery · Scientific apparatus and instruments
