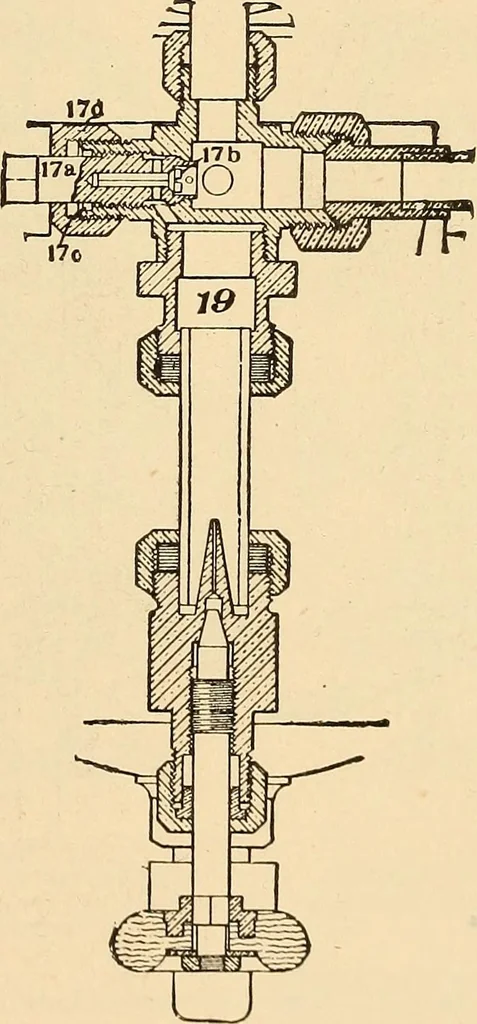

Plug Hdle Washer 34. Automatic Steam Chest Valve, Nut. Complete. 22f Filler Plug Copper Seat. 34a. Body. 23. By-Pass Valve for Air Brake, 34b. Seat. Complete. 34c. Plug. 23a. Centre Piece. 34d. Ball Check. 23b. Stem. 34e. Tail Pipe. 23c. Handle. 34f. Tail Pipe Nut. LOCOMOTIVE APPLIANCES. 257 To… … Fig. 5. Detroit Triple Feed Locomotive Lubricator. Sectional view of feed—showing automatic safety valves above the glasses. hand cut, and place the glass in position. Thenscrew the sleeve V in place, and tighten up the glandnuts. To remove the glass, first unscrew the gland nutsand push the upper…
