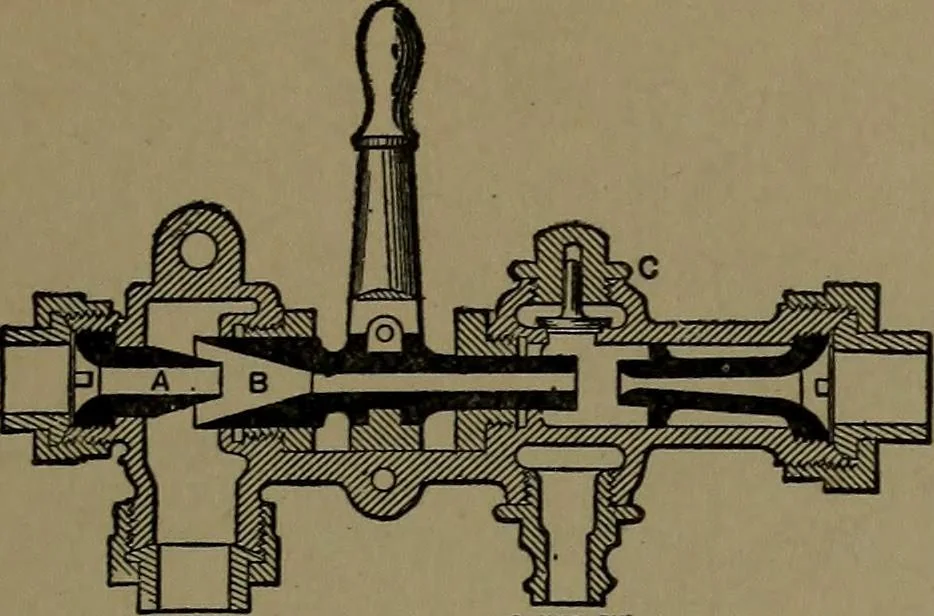

ater-regulatingvalve ; D, stop check to over-flow ; C, automatic check; W,water valve. EBERMAN INJECTOR. — The combining tube slidesfor regulating thelift and over-flow. A single gravity checkvalve, D, closes the overflowwhen the current to the boileris established. 378. NATHAN INJECTOR—A vertical… … 379. LITTLE GIANTINJECTOR.—This modelhas two fixed tubes. Thecentral or combining tube ismovable for adjustment. Asingle automatic check valveregulates the overflow. OHecKVALve-* TO BOILER VALVE seat
