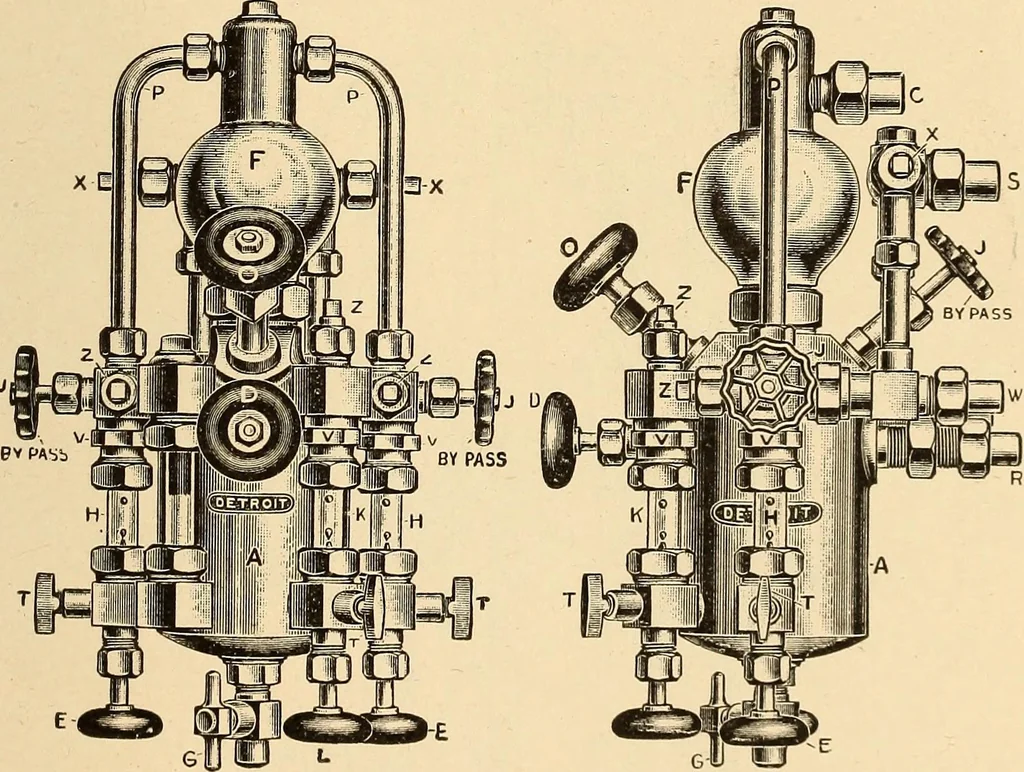

IPLE-FEED LOCOMOTIVE LUBRI-CATOR WITH TIPPETT ATTACHMENT. The tippett attachment has been designed to insurethe regular delivery of the oil to the wearing parts byovercoming the back pressure from the steam chests.It consists of a pipe leading to the dry-pipe within the LOCOMOTIVE APPLIANCES. 259… … Fig. A. Detroit Triple Feed Locomotive Lubricator with Tippett Attachment. (Front View.) C—Boiler Connection. F—Condenser. A—Oil Reservoir. O—Filler Pin-. G—Drain Plug. D—Water Feed Valve. EE—Feed Regulating Valves to Right and Left Hand Cylinders.L—Feed Regulating Valve to Air Pump. Fio. R.…
