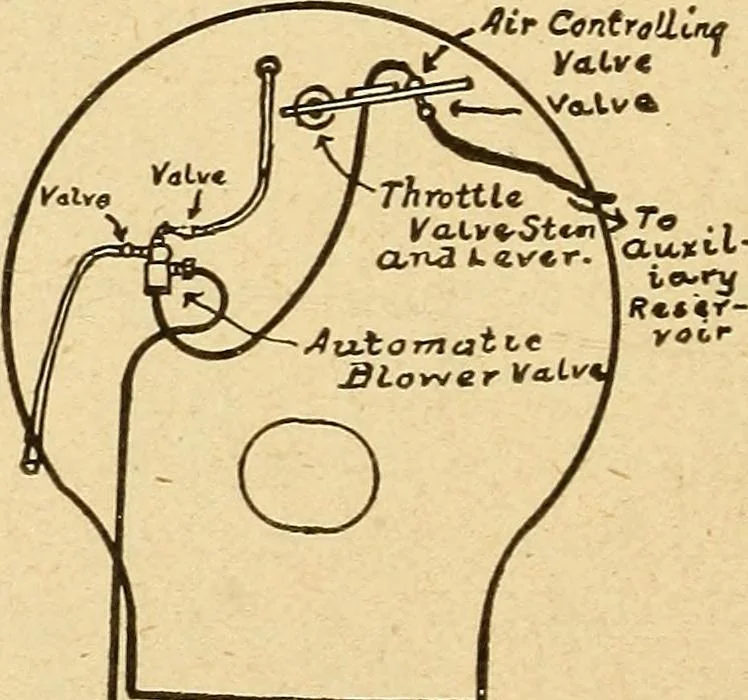

ments by the same manufacturer. CHICAGO & NOTH-WESTERN RY BLOWER VALVE. The automatic blower valve used by the Chicago& North western Railway on suburban locomotivesto prevent black smoke is a valve operated by com-pressed air, which is admitted mechanically by theopening and closing of the… … J To atrnosphen. Fig. 5.C. & N-W. Ry Automatic Blower Valve. auxiliary reservoir of the driver brake and to theautomatic blower valve is shown located just back ofthe throttle lever. When the throttle is closed allcommunication between the two is closed, but when LOCOMOTIVE APPLIANCES. 319 the…
