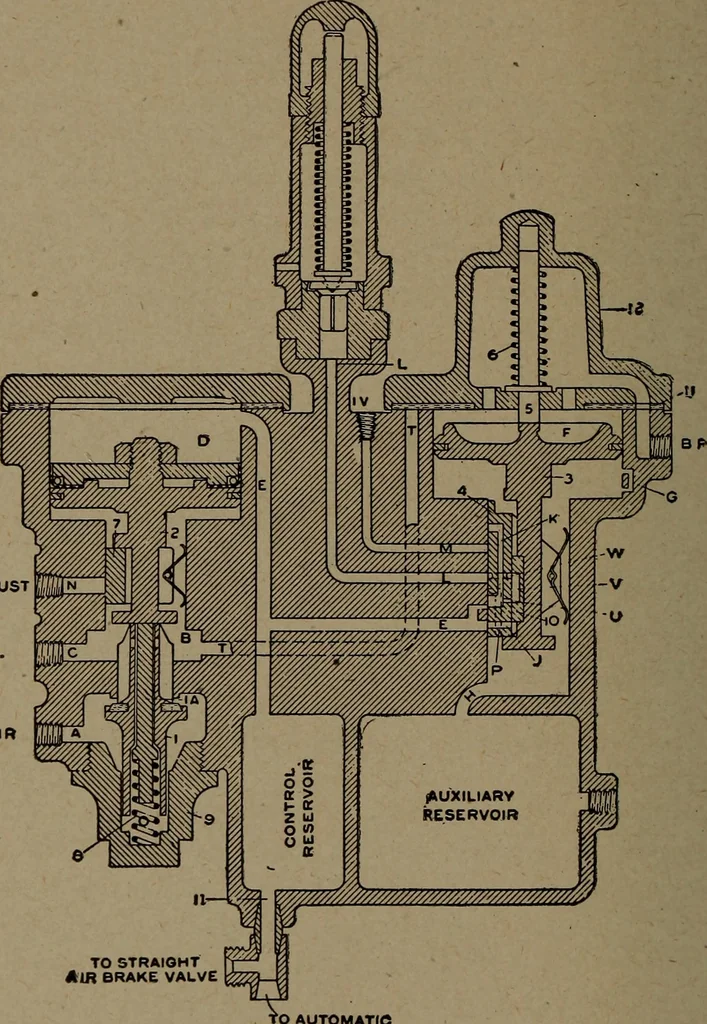

er rapidly. Port P in the slide valve now registers withport L in the seat leading to the safety valve. The build-ing up rapidly of the control chamber and cylinder pres-sure forces piston 2 all the way down, which in turn causesthe admission valves 1 and 1A to be opened wide, permit-ting air from… … TO STRAIGHTAlR BRAKE VALVE fO AUTOMATIC BRAKE VALVE. Fig. 19. Automatic Service Position NEW YORK AIR BRAKE 357 valve permits main reservoir air to flow through a smallport in the rotary, which passes into the control pipe andthence to the control chamber and cylinder. This smallport in the rotary…
