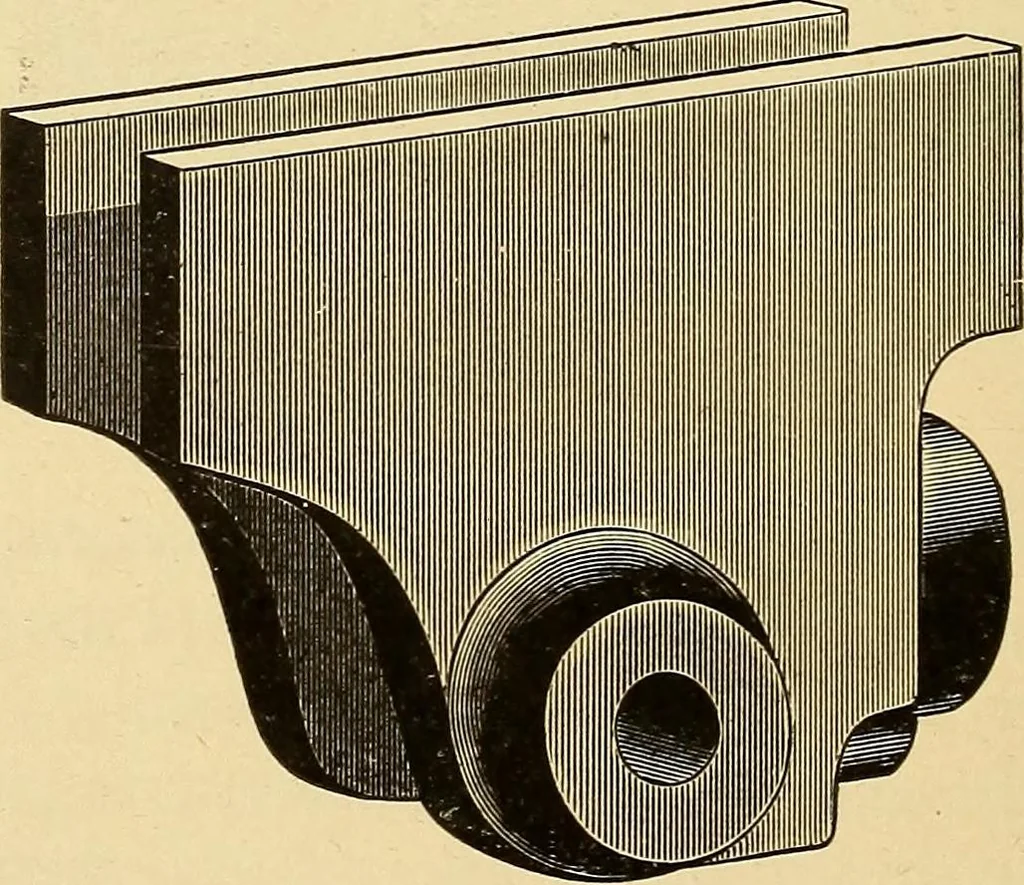

Fig. 2.Solid Cast Steel Cross-Head for 4-Bar Guides. quite general practice. Figs. 1 and 2 show hollowand solid cast steel cross-heads for four-bar guides.Fig. 3 is a cast steel cross-head for two-bar guides. … Fig. 3.Cast Steel Cross-Head for 2-Bar Guides. These can be made lighter than wrought iron cross-heads, are less liable to flaws in their manufacture,and are much less in first cost. LOCOMOTIVE APPLIANCES. 427 Fig. 4 shows another substitution of cast steel forwrought iron in the rocker arm. (For…
