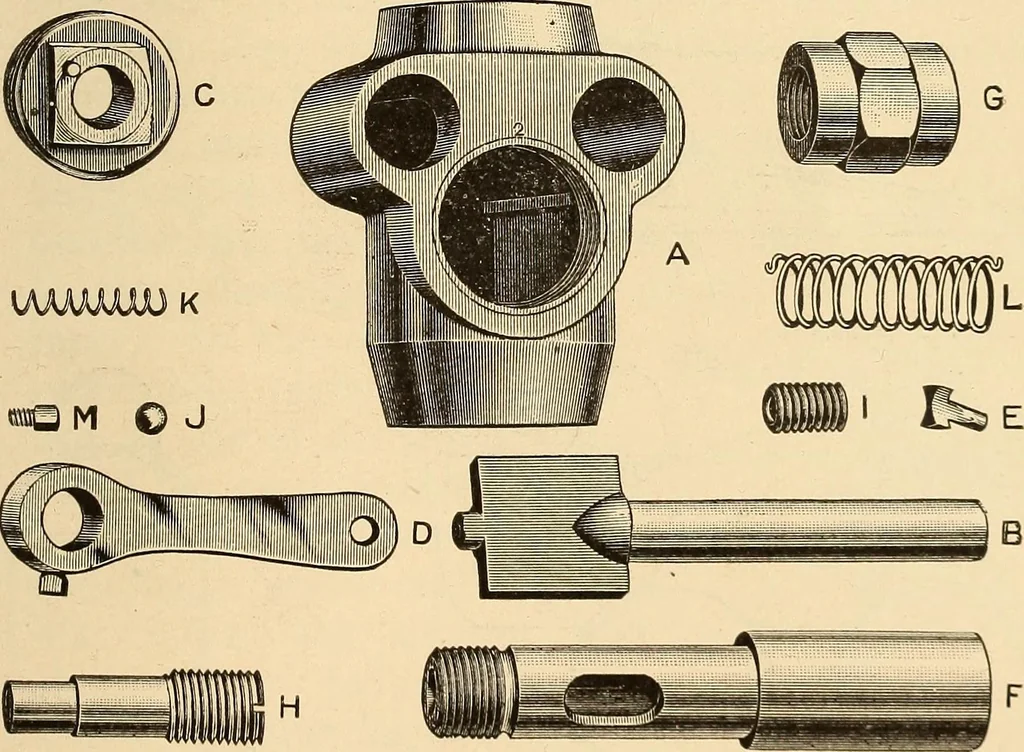

be connected, by suitable means, to the cab, sothat it may be under control of the engineer. A thin LOCOMOTIVE APPLIANCES. 461 sheet steel partition is inserted into the old sand pipes,extending from the dome down to the Huff device,forming a junction with a bridge in the device; this isto… … Fig. 2.Detail Parts, Huff Pneumatic Track Sander. E, in the opposite end the adjusting screw /, andbetween them the ball valve J and the spring K. Thistube H is kept from turning in the feed tube F by theset screw M. The body A is fitted with a foot valve B, forming its floor, and so connected, as…
