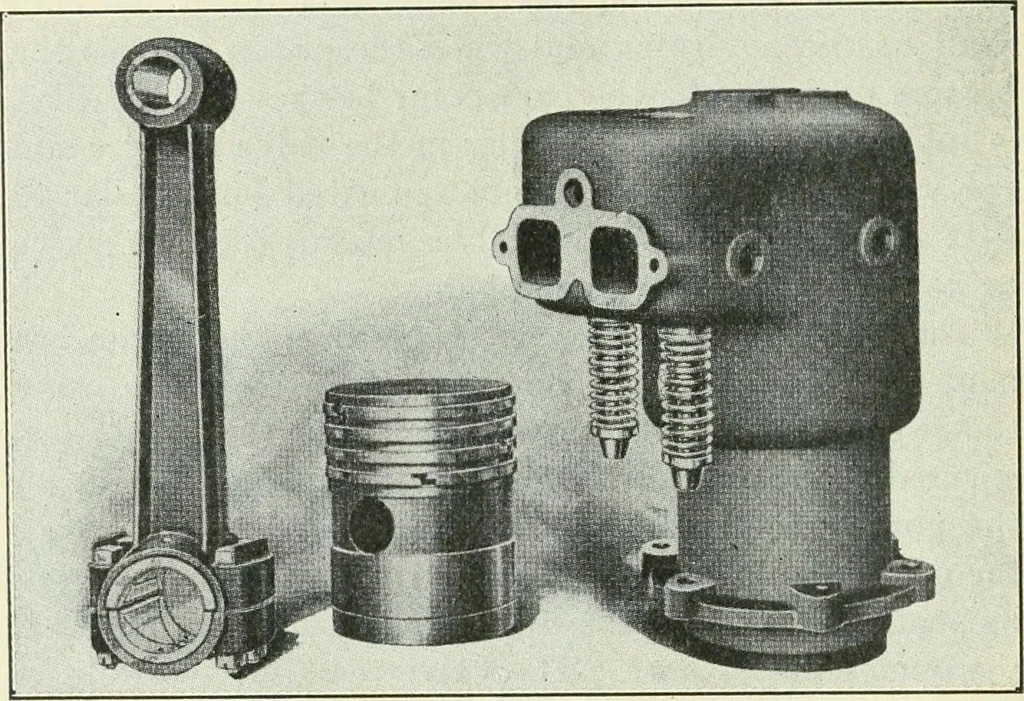

greater stress than any other member.As a rule cylinders are made of cast iron and unless of 130 The Modern Gas Tractor the air-cooled form have water jackets cast integral.Tractor engines of the usual pattern use individualcylinder castings, though some of the forms which arebuilt according to… … Fig. 39.—Cylinder With Both Valves on One Side, Four RingPiston and Marine Type Connecting Rod. The conventional form of gas-engine cylinder is outlinedat Fig. 39 in connection with the piston and connectingrod. This cyhnder is of the L form and has the waterjacket cast integral. Both valves are…
