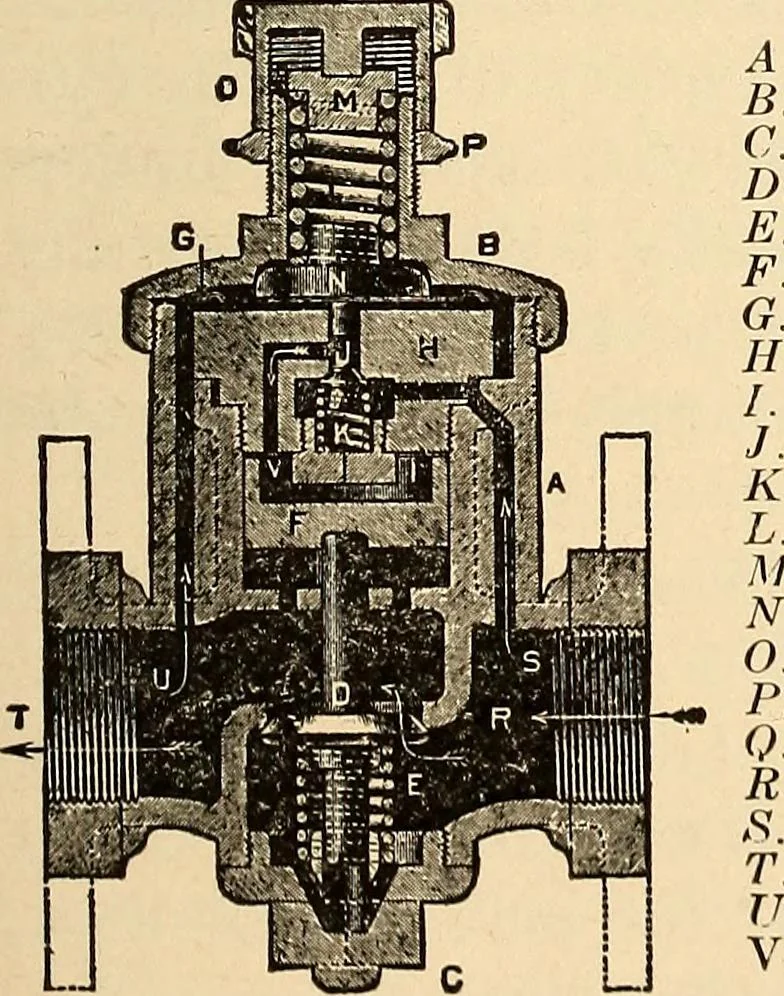

. B. Top Cap of Main Body. C. Bottom Cap of Main Body. D. Main Valve. E. Main Valve Spring. F. Piston. G. Diaphragm.H. Body of Regulating Valve./. Cap of Regulating Valve.J. Regulating Valve.K. Regulating Valve Spring.L. Adjusting Spring.M. Top Seat of Adjusting Spring.N. Bottom Seat of Adjusting… … Fia. 5.Taafel Pressure Regulator. hand side, as shown in the cut. A portion of thesteam passes up through port {S) to the regulatingvalve (J) which it finds open, due to the downwardpressure of the adjusting spring (L) on the diaphragm(6r), which in turn bears upon the small valve (J).This small…
