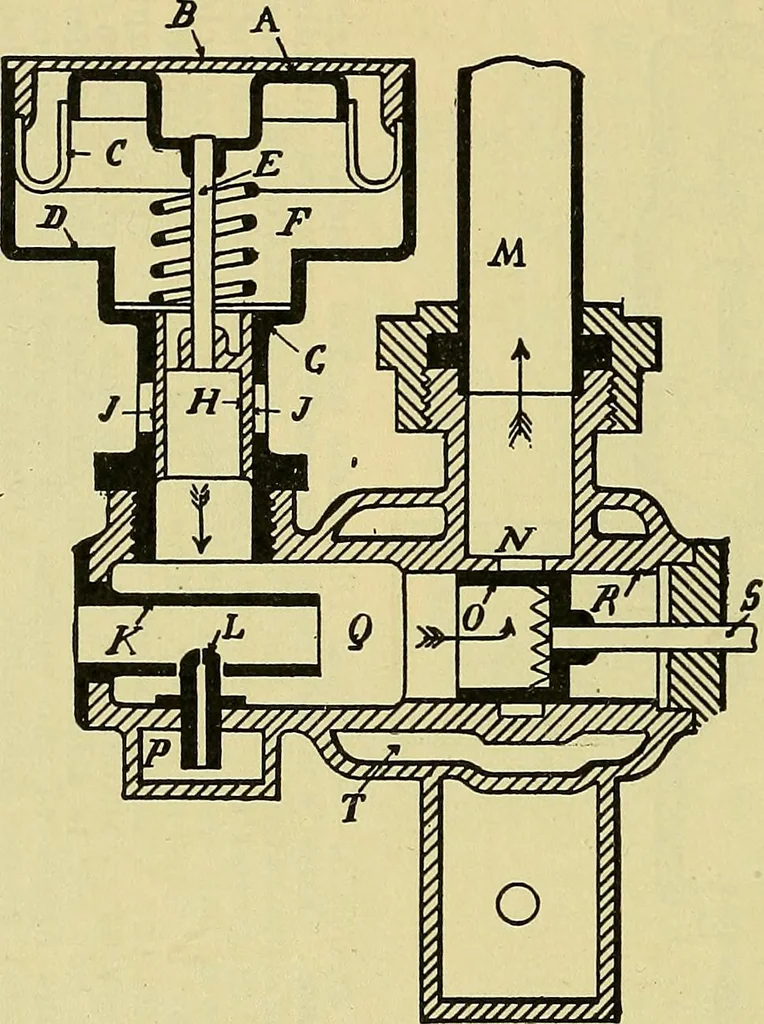

322 SBIP-PROPHUED VBHICLBS. (3.54 inch) and the stroke length 120 mm. (4.72 inch). Thismotor developed 6 horse-power at 700 revolutions. The clear-ance space was concaved, and the compression pressure was 60pounds. As shown in the accompanying illustration, the Daimlershaft-cam governor was used… … Fig. 238.—Section of the Krebs Mixer used with the later Panhard-LevassorEngines. The float chamber and other parts are identical with theCentaure carburetter. Gasoline conies from the float chamber throughchannel, P, and spraying nozzle, L, air being admitted at K. Q is themixing chamber from…
