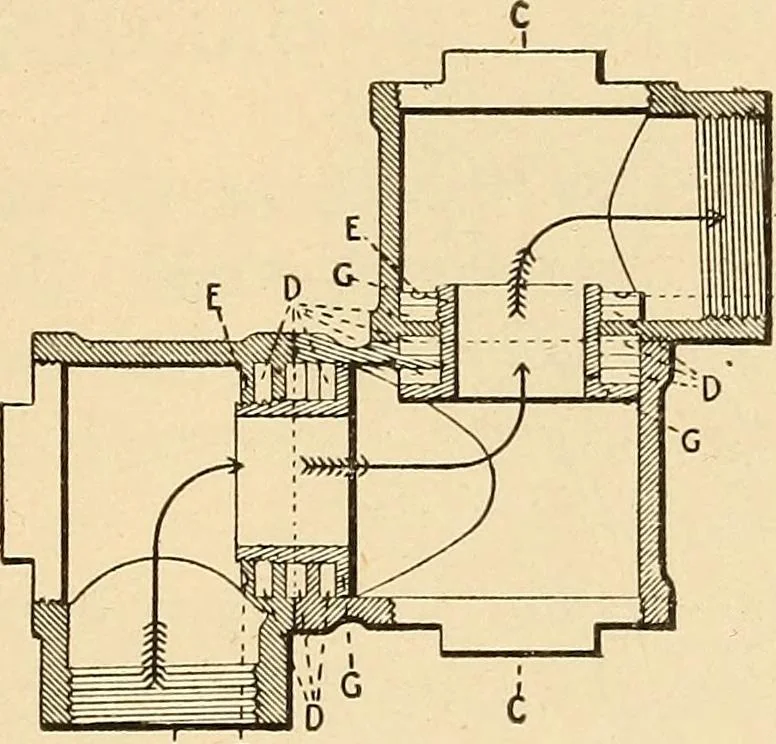

Fig. 1.Climax Flexible Metallic Joint. Fig. 2 shows a sectional view of one of the universaljoints. They are made entirely of steam metal, andthe two glands (G-G) are each surrounded by threeJenkins discs screwed down to a joint by the nuts(E-E). These nuts have holes in their faces to per-… … D—Jenkins DiscsE for Packing. E-E—Nuts to holdGlands. G-G—Glands. Fig. 2.Climax Flexible Metallic Joint—Double Joint. The center swivel joint shown in Fig. 1 has a singlegland and set of packing similar to those shown inFig. 2. PRESSURE GAUGES. The first devices for indicating the varying changesof…
