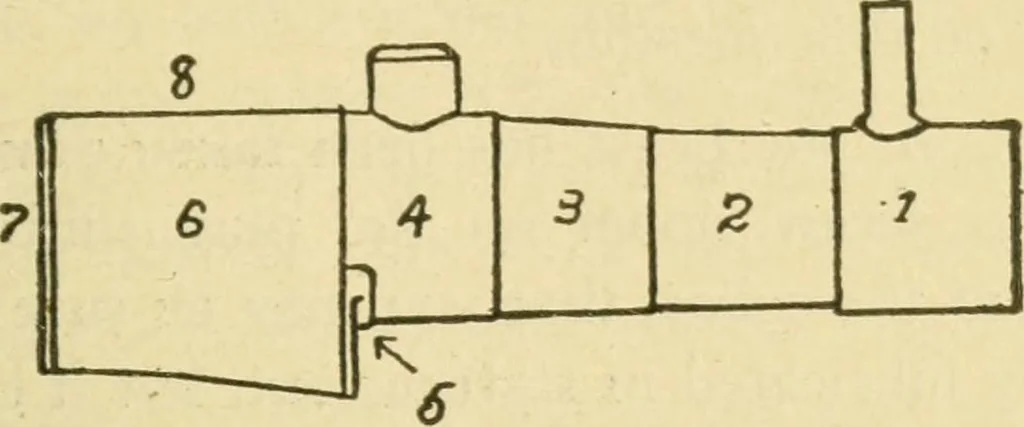

et. Theseparts form the barrel of the boiler. Sheet 5 is the sheetthat connects the underside of the barrel of the boilerto the outside shell of the fire box and is usually termedthe throat sheet; 6 is the outside sheet of the firebox ;7 is the back boiler sheet, or head; and 8 is the roof sheet.… … side shells of the firebox are riveted to an iron ring calledthe mud ring. 132. A Pound in the Trailer.—*On several of ourE2A class engines equipped with trailers we found apound or kick in the trailer. I contend that there can notbe any lost motion in the trailer box that would causea pound of…
