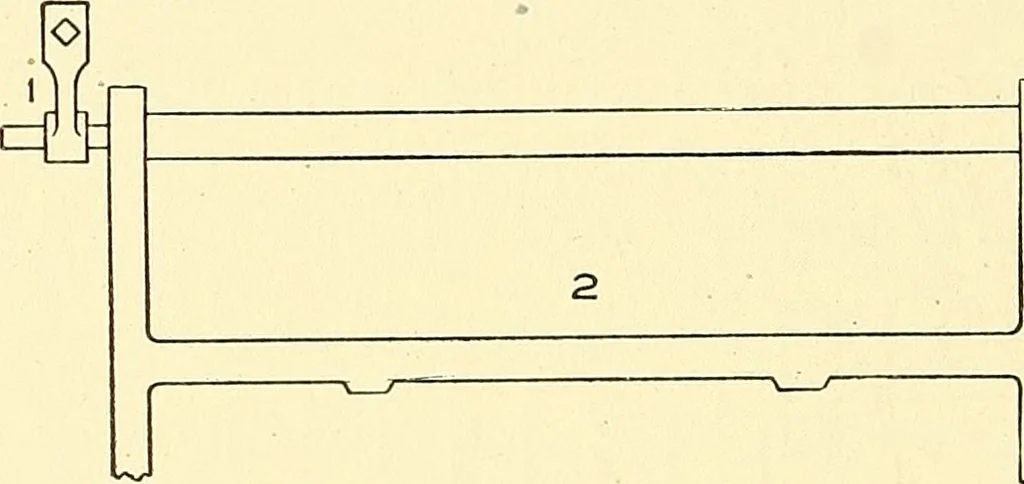

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 335
tch comes in contact with therounded edges of the square and in this manner the cylinder isturned. There is also another catch fixed underneath, but it isnot in contact with the cylinder, and is adjusted so that it can beraised up in contact and the top catch raised from contact withthe cylinder.… … Fig. 19. Iron Bar Supporting Batten Frame. and each rod is fixed to an arm that is set-screwed on a shaft sup-ported by brackets fixed to the arch of the loom. At the end ofthis shaft another arm is fixed and is connected to the eccentricrod that is attached to the clamp that encircles the cam or…
