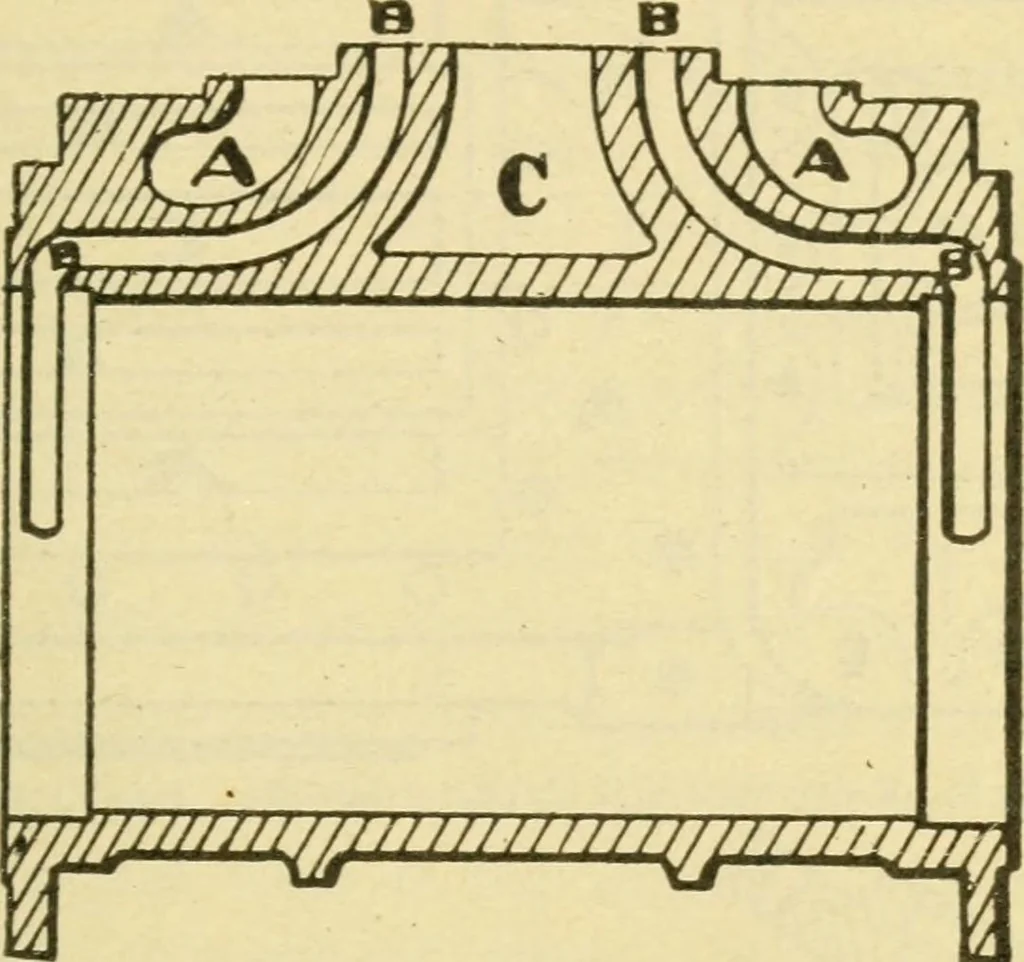

versa, thence to the cylinder? How many openings in cylinder saddle? Name andgive use of each. Answer.—The answer to a question does not alwaysgive every detail sufficiently clear to a student to enablehim to understand it without further effort or.study onhis part. We will try to explain this mere… … JWJJJW///////////l^///;/, ^ Fig. 1. Longitudinal Section of Cylinder. Steam is generated at or near the heating surfaces ofthe boiler and rises into the dome. When the throttlevalve is open steam enters the stand pipe, and follows,through it, to the dry pipe to the nigger head, or tee,in the…
