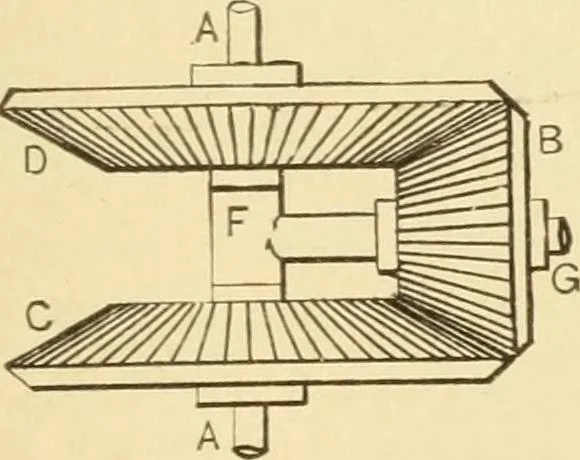

the shaft A A. Differential mo-tions of the two wheels C D will produce a ro-tation of the arm F G, around and with theshaft A, or, by making the arm loose on the shaft, a differential mo-tion may be made by shaft and arm. 980. EPICYCLIC TRAIN.—If gear wheel Cis fixed, and the arm D moved around…
