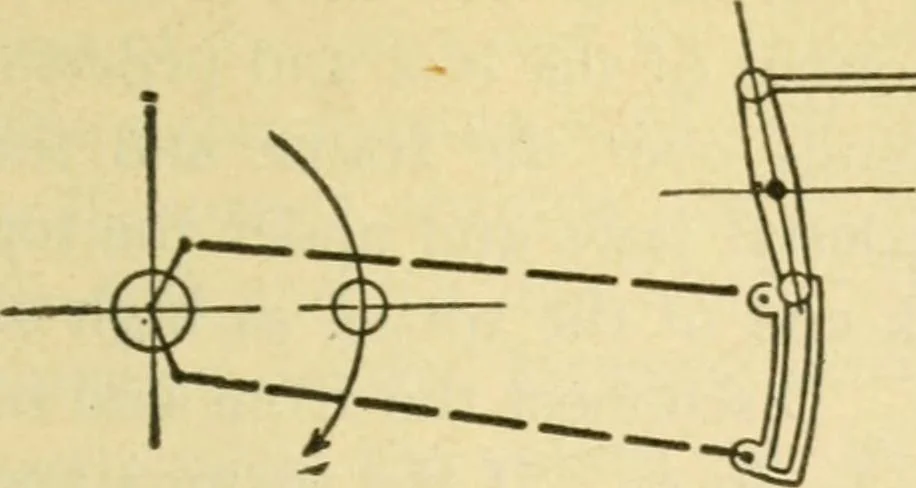

ad-mission valve and direct rocker. Fig. 5 shows the position of eccentrics if an outside ad-mission valve were used with a direct rocker. Fig. 7 brings you back to the starting point, only witha piston instead of a slide valve. 60. Broken Axle or Back Tire on ConsolidatedEngine.—How would you…
