Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 152

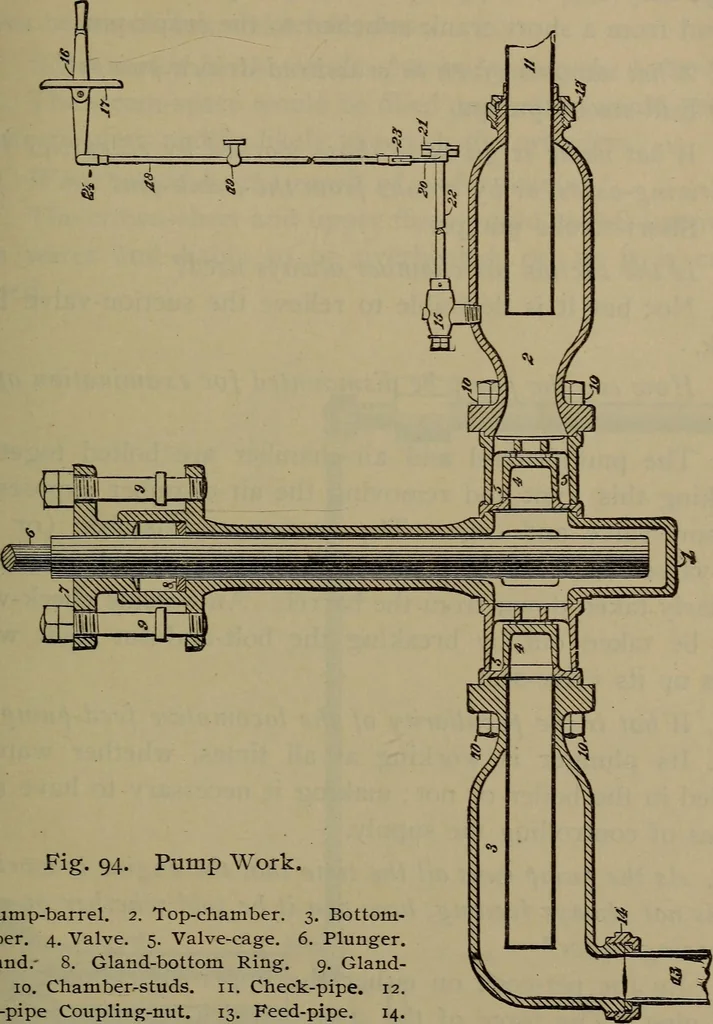

practically the same, and play in cages 5which may be readily detached from the pump-barrel and thechamber by running the nuts ofif the chamber-studs 10. Tfieplunger 6 plays through the gland 7 which is inserted in the.stuffing-box, and is held in by gland-studs 9. Q. Where are the pumps usually… … Pump Work. I. Pump-barrel. 2. Top-chamber. 3. Bottom-chamber. 4. Valve. 5. Valve-cage. 6. Plunger.7. Gland.- 8. Gland-bottom Ring. 9. Gland-studs. 10. Chamber-studs. 11. Check-pipe. 12.Check-pipe Coupling-nut. 13. Feed-pipe. 14.Feed-pipe Coupling-nut. 15. Pet-cock. 16. Pet-cock Lever in Cab. 17.…
