Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 266

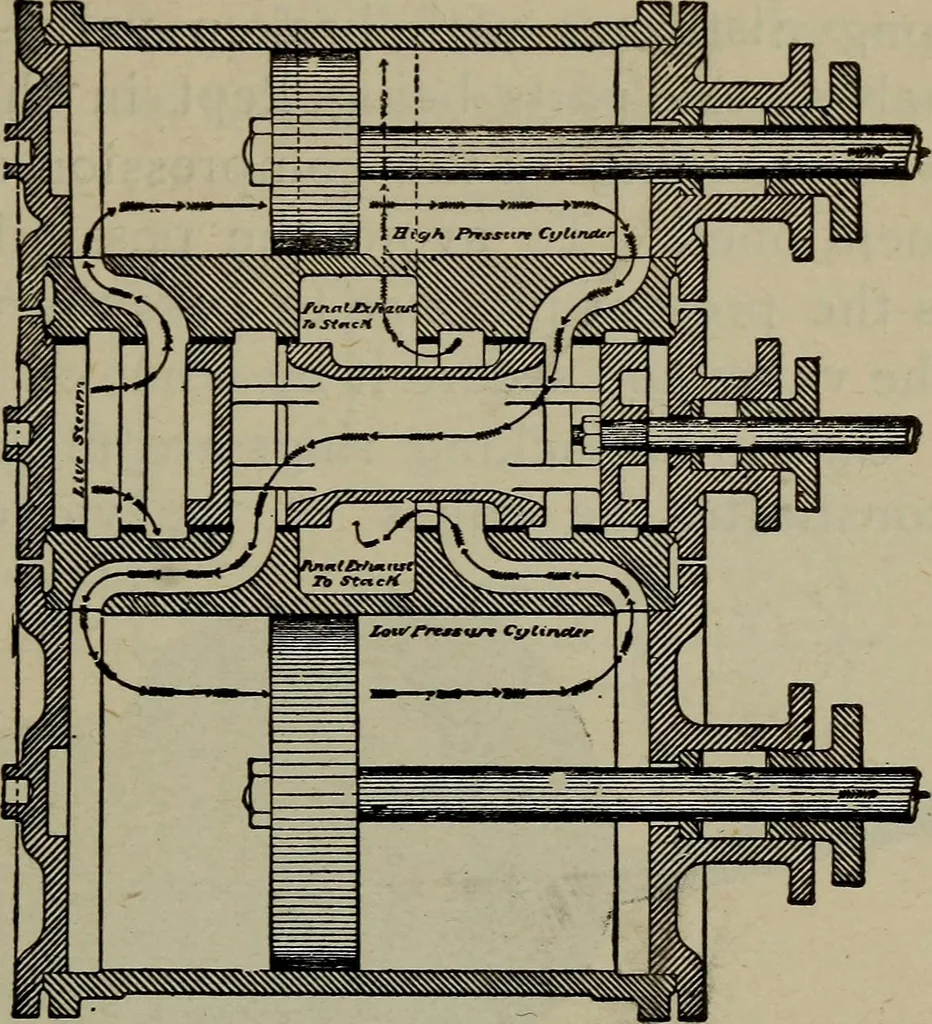

use of ahard cast iron bushing (Fig. 123). This bushing isforced into the steam-chest under such pressure as t<prevent the escape of steam from one steam passag< COMPOUND LOCOMOTIVES 265 to another except by the action of the valve. Thusan opportunity is given to machine accurately all… … haust of both cyl-inders. The ex-haust steam fromthe high-pressurecylinder becomesthe supply steam for the low-pressure cylinder.As the supply steam for the high-pressure cylinder Figure 122
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
