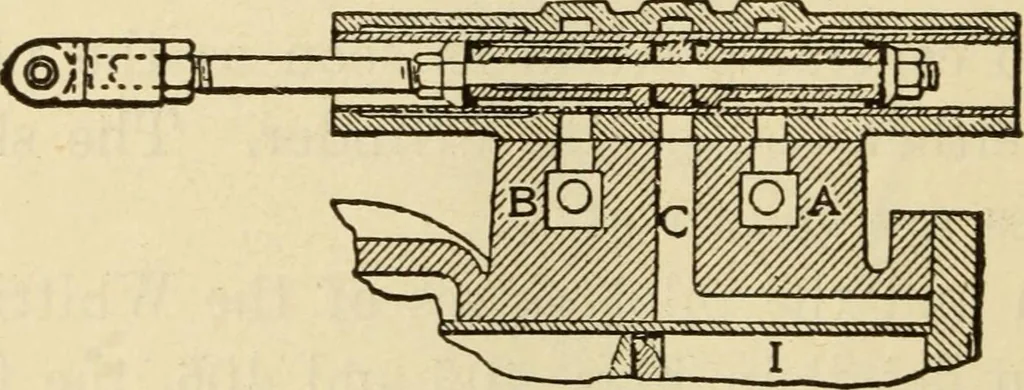

end of lever D, the latter being pivoted at G.The part B, which holds the pivot G is actuated by thelever K. The supply pipe is connected with the right-handend of the pilot-valve chamber through the pipe E. If therod C is moved to the left, high-pressure water will passthrough the pilot valve to… … Fig. 407 main valve will carry the lower end of the lever I) to theleft and the upper end to the right, until the pilot valveis returned to the closed position. If the pilot-valve rodC is moved to the right, the end I of the main valvewill be connected with the discharge and the water willescape,…
