Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 319

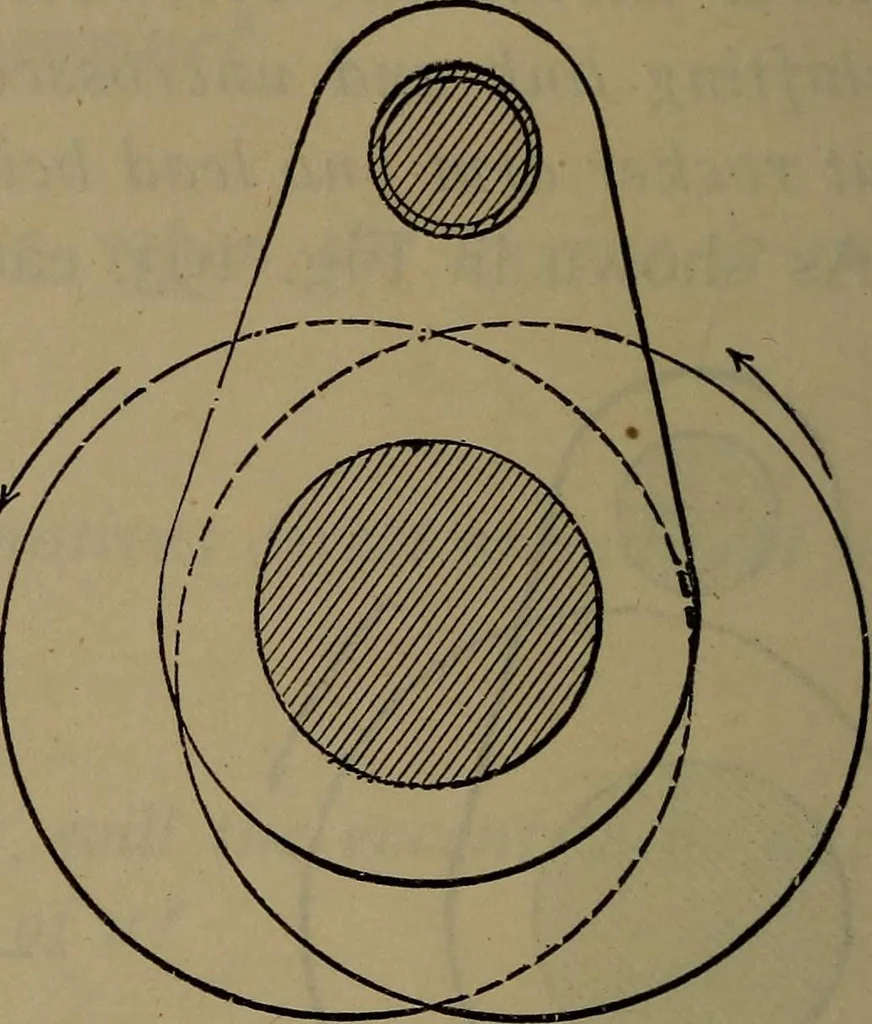

Fig. 194. One Kccentric,Lapped Valve, no rocker. Fig. 195. Two Eccentrics, LappedValve, no rocker. line for steam admission, at stroke end; the eccentric belliespointing from the crank. Q. How can the amount ahead of the 900 position, neces-sary to make the steam edge of the valve lip line with the…
Locomotives
