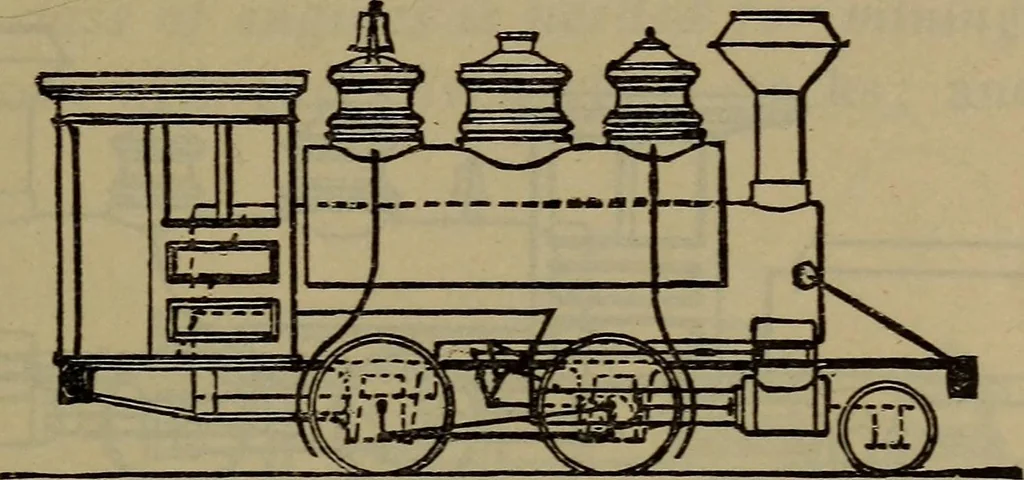

of engines is desirable for both switching andlocal service? A. There are several types. One has two pairs of driverscoupled, and a back tank, with a four-wheeled truck under it;this being the Forney type. (Fig. 12.) Another has two pairs CLASSIFICATION. 29 of wheels coupled, and a pony truck in… … Fig. 13. Switching Engine, Saddle Tank. shown in Fig. 7. A fourth class has four wheels coupled, anda back tank; this being a double-ender and having a ponytruck under the tank and another in front, besides two pilots.(Fig. 14.) A fifth class has four wheels coupled, a ponytruck in front,- and a…
