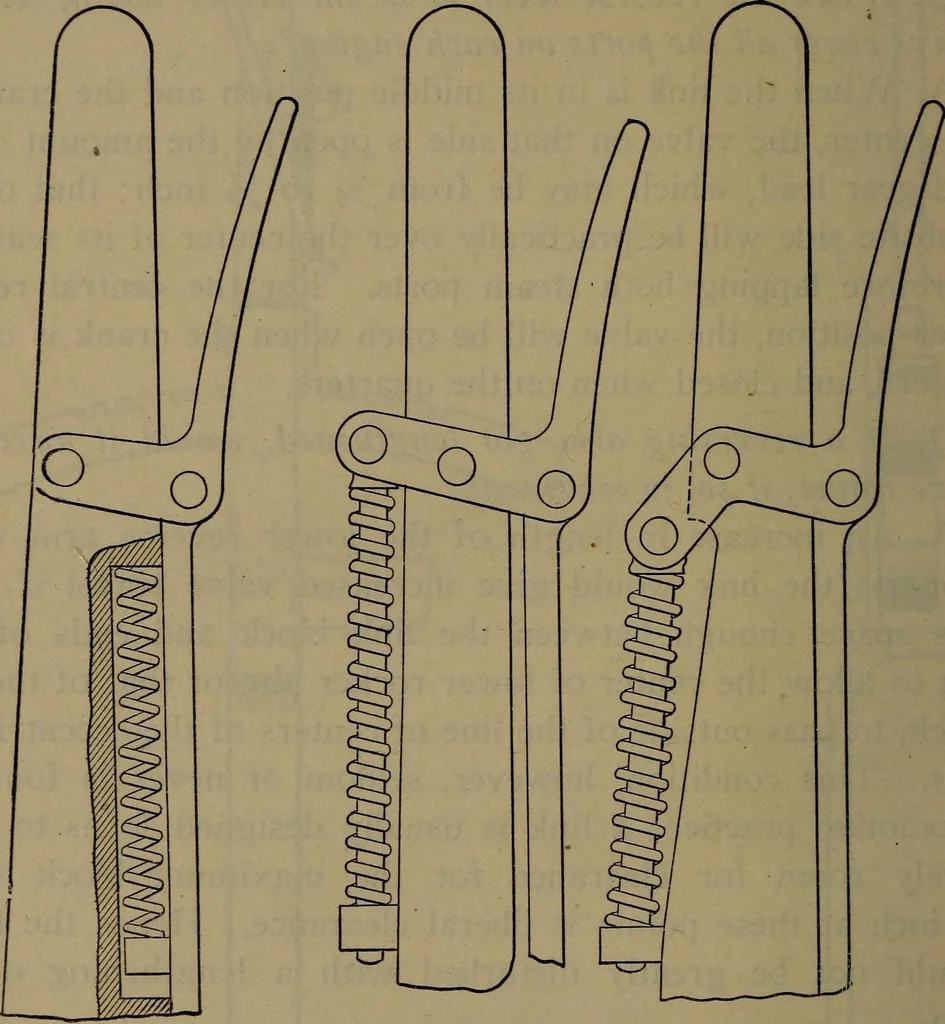

ut:is ugly. In Fig. 213 the spring is always under tension andits resistance decreases as the latch is raised; it requires, how-ever, a stiffer spring than the others, on account of the angleof the latch. 326 LOCOMOTIVE CATECHISM. Q. Is there any other device for graduating the cut-off andreversing… … Figs. 211, 212 and 213. Reverse Lever Handles. rotary latch. In Figs. 214 and 215 the screw is right-handedthrough its entire length and plays in but one nut. Q. How can greater speed of adjustment be obtained bythis method and a screzv still be used? A. As in Figs. 218 and 219, when the screw is…
