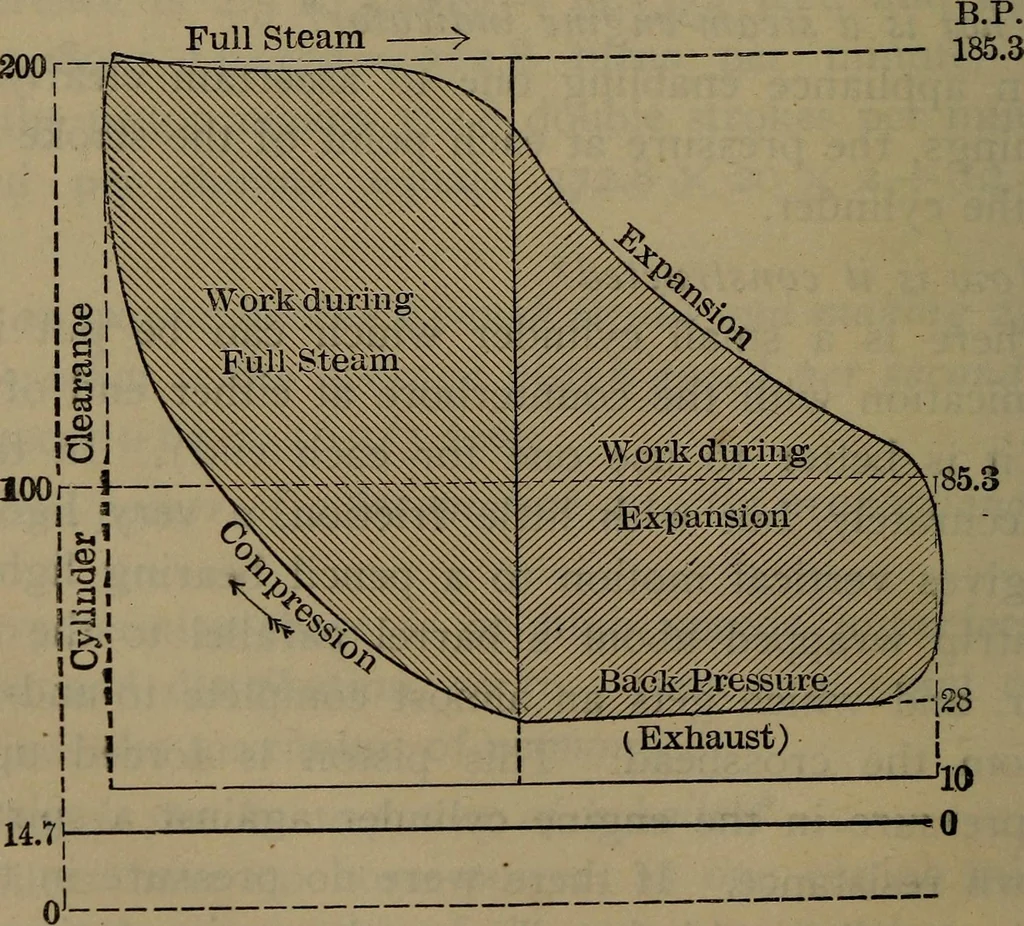

j 85.3 Fig. 237. Theoretical Diagram. … Fig. 238. Indicator Diagram. INDICATOR. 361 straight horizontal line. Under constant pressure in the cylin-der the pencil would draw a straight line, the hight of whichfrom the first line would represent the pressure. Under con-stant pressure during the entire out stroke and constant backpressure…
