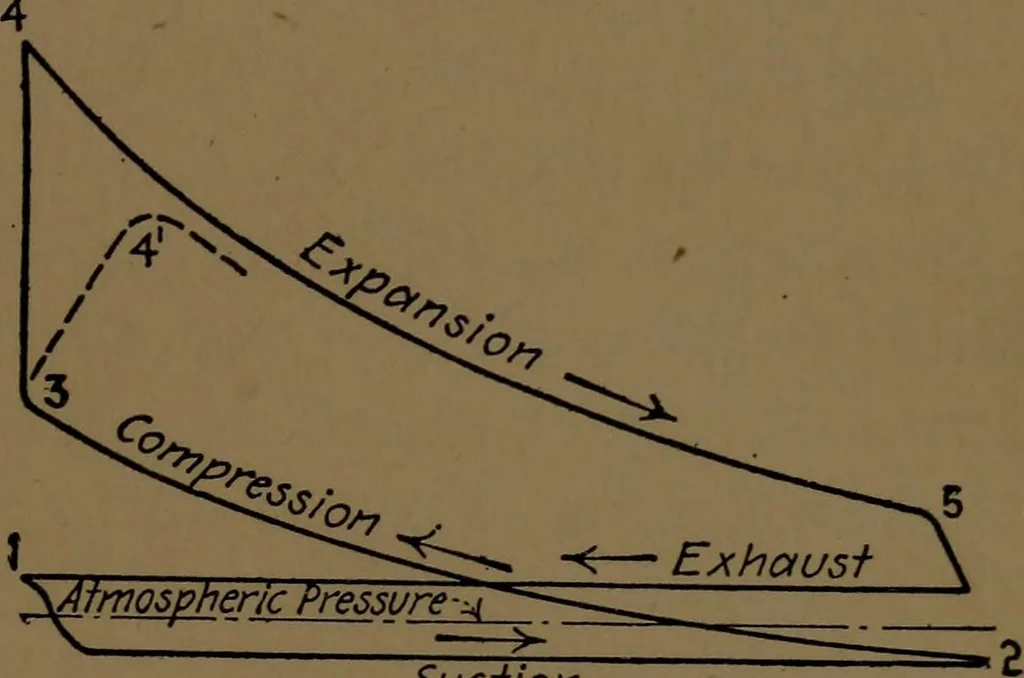

An illustration from Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice, 1922, leaf 302 — he exhaust valve has closed; otherwise therewould be a tendency for theexhaust gases to enter the in-take. The closing of the inletvalve takes place after crankend dead center so as to pro-vide a good opening for thecharge. The correspondingcrank angle may be as muchas 20° to 30°, with… … Suction
