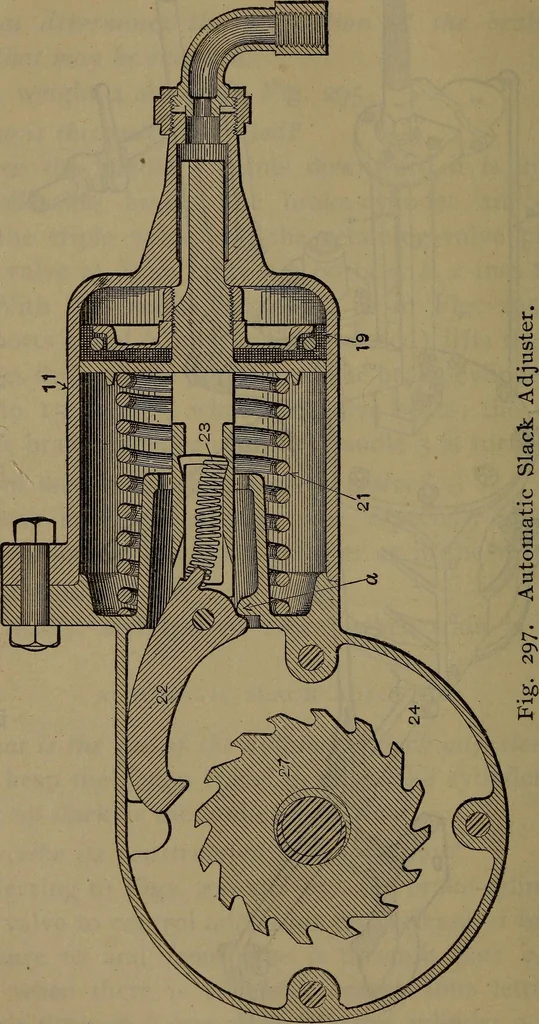

446 LOCOMOTIVE CATECHISM. … HIGH-SPEED BRAKE. 447 engaging ratchet 27 fast on screw 4. On brake release theair in 2 escapes through b and a, spring 21 forces back thesmall piston; the pawl, ratchet, and screw drawr the lever 5slightly in, shortening the brake-piston travel and forcing theshoes tpwrard the wheel treads.…
