Treatise covering operation, defects and remedies of the locomotive, Westinghouse and New York air-brake, also questions and answers to first, second and third year's progressive examinations (1917)
MacDonald, J. R. [from old catalog] · [Chicago] The author · leaf 369

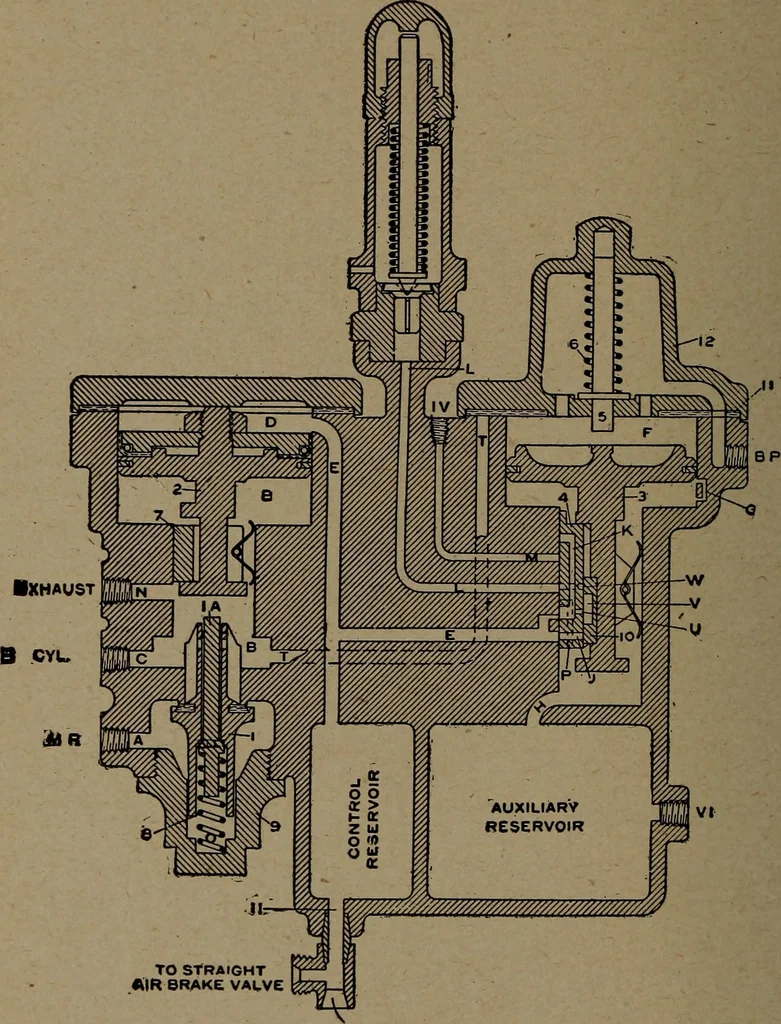

ly adjusted? A. If on a light engine, place the automatic brake valvein emergency position and adjust the safety valve by thered hand on the small gauge at 68 pounds. Q. How can it be known if the reducing valve is properlyadjusted? A. Place the straight air valve in application position andnote… … TO STRAIGHTAIR BRAKE VALVE TO AUTOMATIC1 9RAKE VALVE Fig. 24. Automatic Release by Independent Brake Valve . NEW YORK AIR BRAKE 367 Broken Pipes on L T Equipment—Method of Treating the Same Q. What should be done in the event of the low pressuregovernor pipe breaking off with the schedule L. T. 2…
Locomotives · Westinghouse air-brake · New York air-brake
