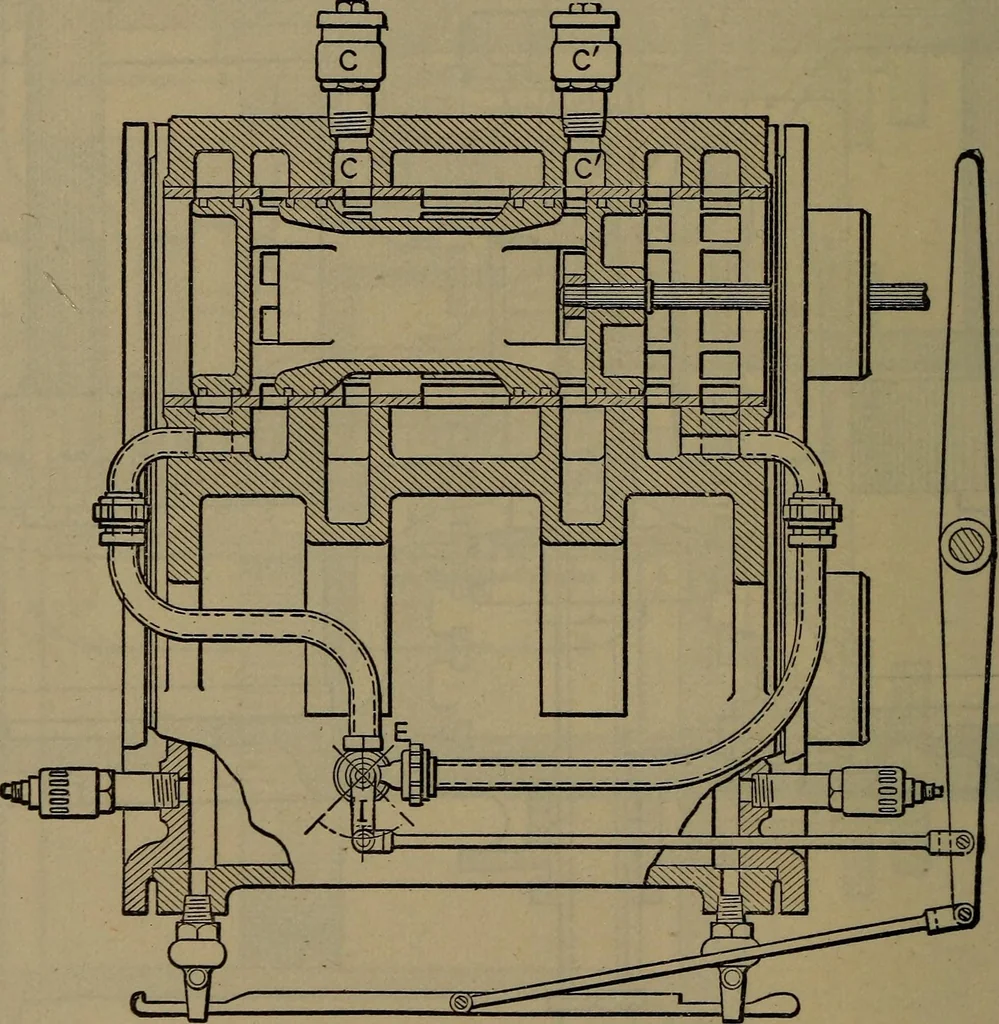

dily at the H. P. cylinder cocks orindicator-plug holes; or where there is a relief valve on theend of the extended valve stem, through this valve. 566 LOCOMOTIVE CATECHISM. Q. Where would leaky rings I and 8 show steam with thereverse lever off the center? A. Through the air valves C.C1, of Fig.… … Fig- 377- Cylinder Cock Rigging. A. Only partial loss, as it would do work in the L. P. cyl-inder. Q. What is the test of tightness of rings 3, 4, 5, 6? A. With reverse lever in full gear, starting valve open, ACCIDENTS TO VAUCLAIN COMPOUNDS. 567
