Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 599

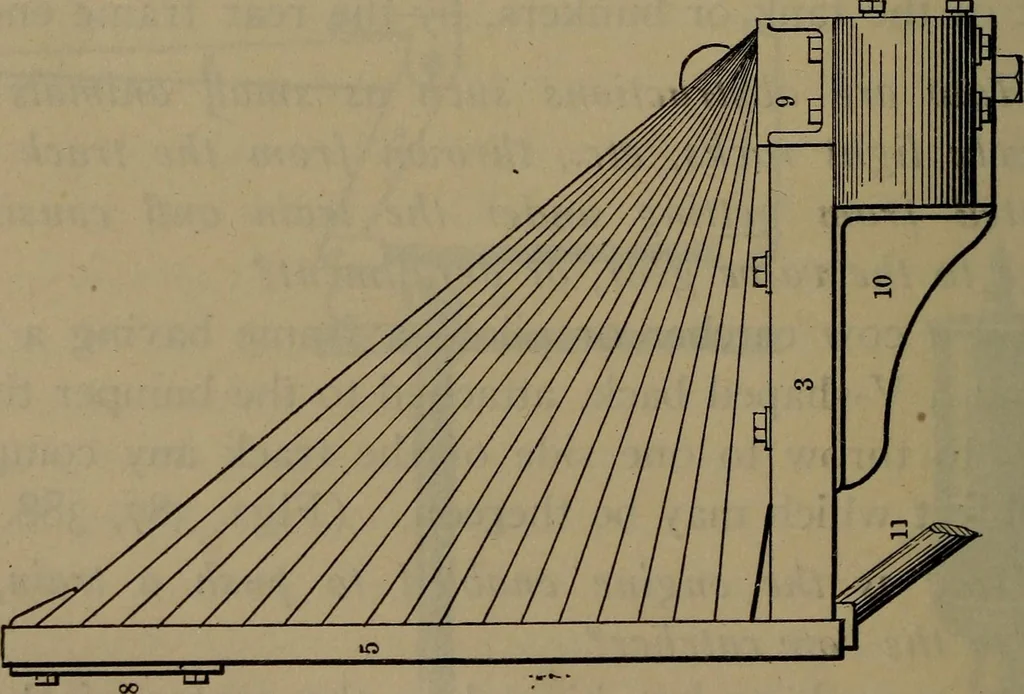

pushing bar hinged to the center of the bumpertimber, in front, and which, when not in use, lies along thefront edge of the cow catcher. Q. How is light snozv removed front (he (rack? 584 LOCOMOTIVE CATECHISM. A. By brushes or by iron plates (according to its depth)attached to the cow catcher. Q.… … Figs. 387 and 388. Pilot and Front Bumper. 1. Bumper. 2. Stiffening-plate. 3. Pilot-frame. 4. Pilot-bars. 5. Pilot Bottom-band. 6. Draw-bar. 7. Draw-bar Shoe. 8. Bottom Plate. 9. Pushing-shoe. 10.Pilot-bracket. 11. Middle Brace. HEADLIGHTS. 585 upper portions of the driving-wheel rims, to prevent…
