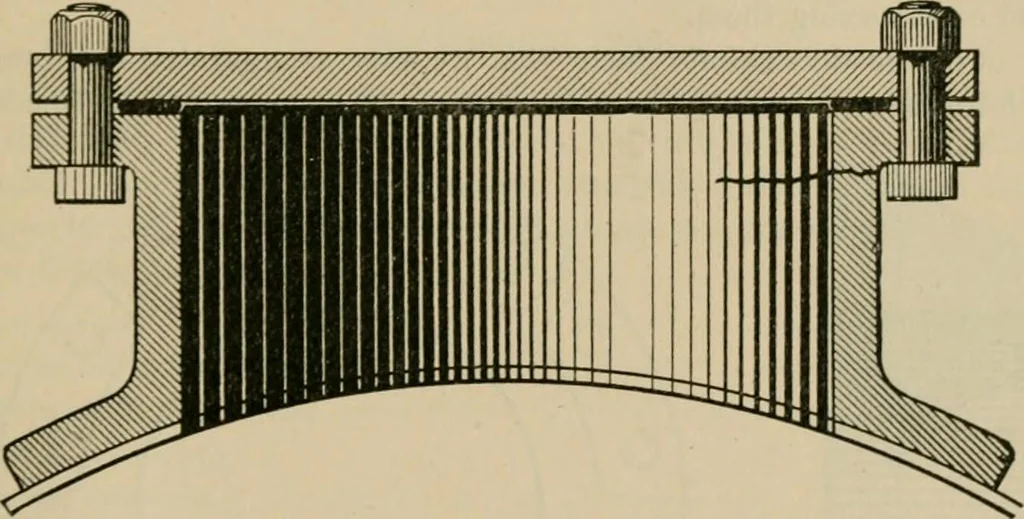

le, the mouth-piece illustrated in Fig. 1. The internal diameterof the east inn, in this case, was thirty inches, and a steam pressure of 100 pounds to theBquare inch was carried, making the total load on the cover-plate some 71,000 pounds.This Load was transmitted to the flange of the casting by… … Fig. 1. —A Cast-Iron Flange without Brackets. attention, however, to the fact that since the cover-bolts are not in line with the body ofthe casting, the strain in the flange is neither a simple shear nor a simple pull. In fact,the flange is in the condition of a beam loaded at one end and fixed at…
