Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 71

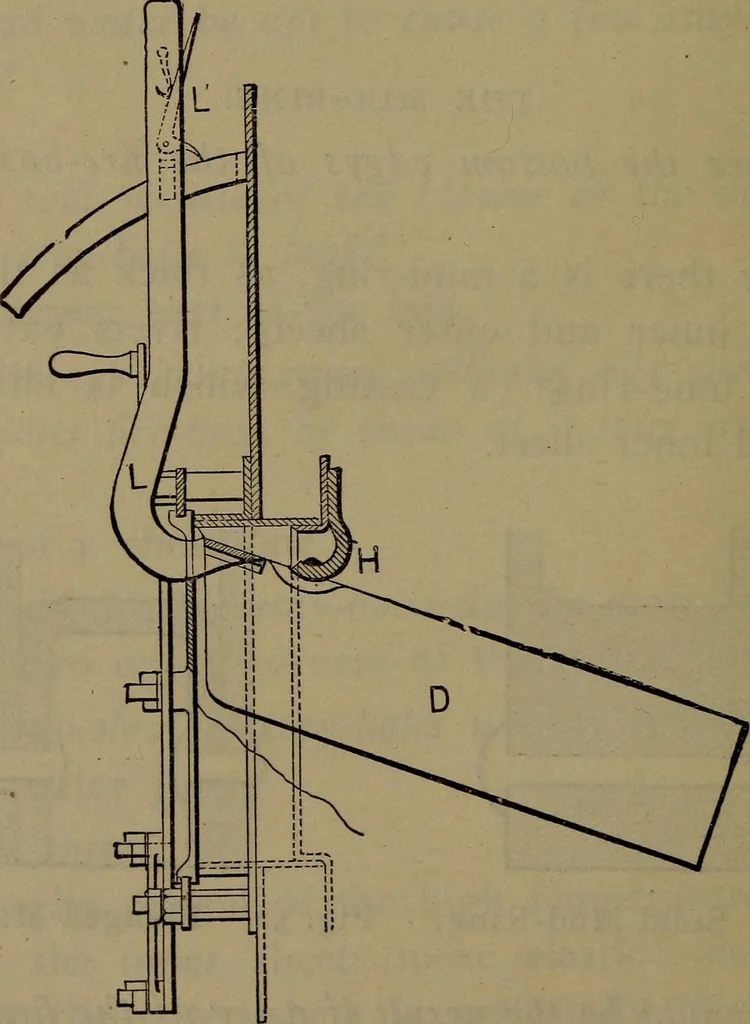

in that portion thusfilled. 6S LOCOMOTIVE CATECHISM. 0. Is there any other way of making the joint than by amud-ring? A. Instead of the solid mud-ring as in Fig. 51, there maybe a boiler-plate ring flanged over so as to have a section asin Fig. 52, with both the inner and the outer sheets… … Fig. 53. Hudson Furnace-door Deflector. way, and having a chain by which to raise its latch andswing it. THE FIRE DOOR. 69 Q. What is the objection to this type? A. When it is opened, cold air rushes into the flues and causes imperfect combustion and visible smoke, besidescracking plates. Q. Hozv…
Locomotives
