Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 723

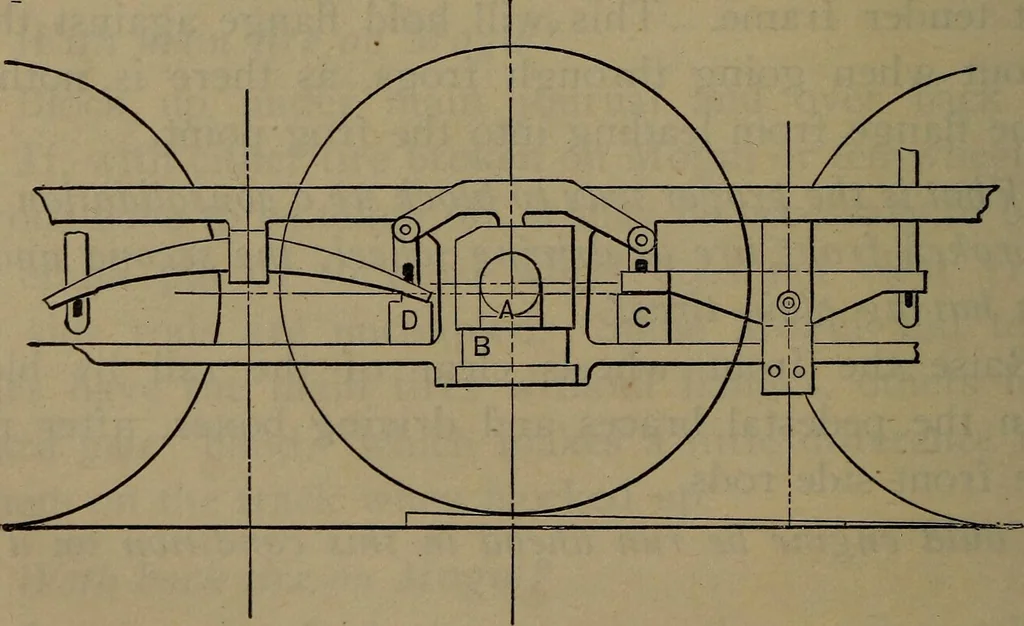

Fig. 408. Front Driver with Tire Removed. fit a block A between this and the binder; chock up the frontend of the equalizer nearest the tireless wheel with a block C,and go ahead, being sure from time to time that the lame wheelstill keeps off the rail. … Fig. 409. Main Driver with Tire Removed. Q. What should be done in case of a broken main-drivertire on a ten-wheeler or a Mogul? ACCIDENTS TO TIRES. 709 A. Run the wheel up on a wedge; with a hard block,C, chock the back end of the short equalizer and the front endof the back spring; remove the…
Locomotives
