Locomotive dictionary. definitions and illustrations of American locomotives, their parts and equipment, together with typical illustrations of machine tools and devices used in their maintenance and repair (1916)
American Railway Master Mechanics' Association, Wright, Roydon Vincent, 1876-1948, Mitchell, George · New York, Chicago : Simmons-Boardman Pub. Co.; [etc., etc.] · leaf 287

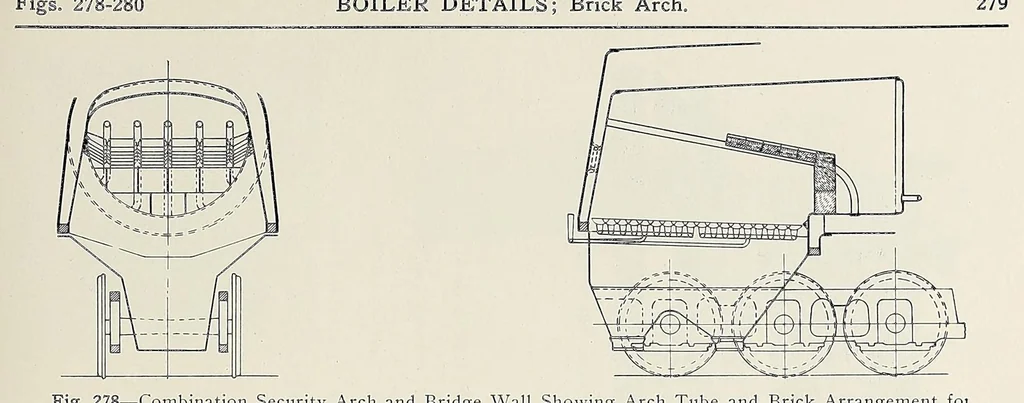

Figs. 278-280 279 BOILER DETAILS; Brick Arch. … Fig. 278 — Combination Security Arch and Bridge Wall Showing Arch Tube and Brick Arrangement foi Barrel Combustion Chamber with Extremely Shallow Throat; American Arch Company. Fig. 279 — Gaines Combustion Chamber; American Arch Company. Fig. 280 — Gaines Locomotive Furnace, Security Arch and…
Locomotives
