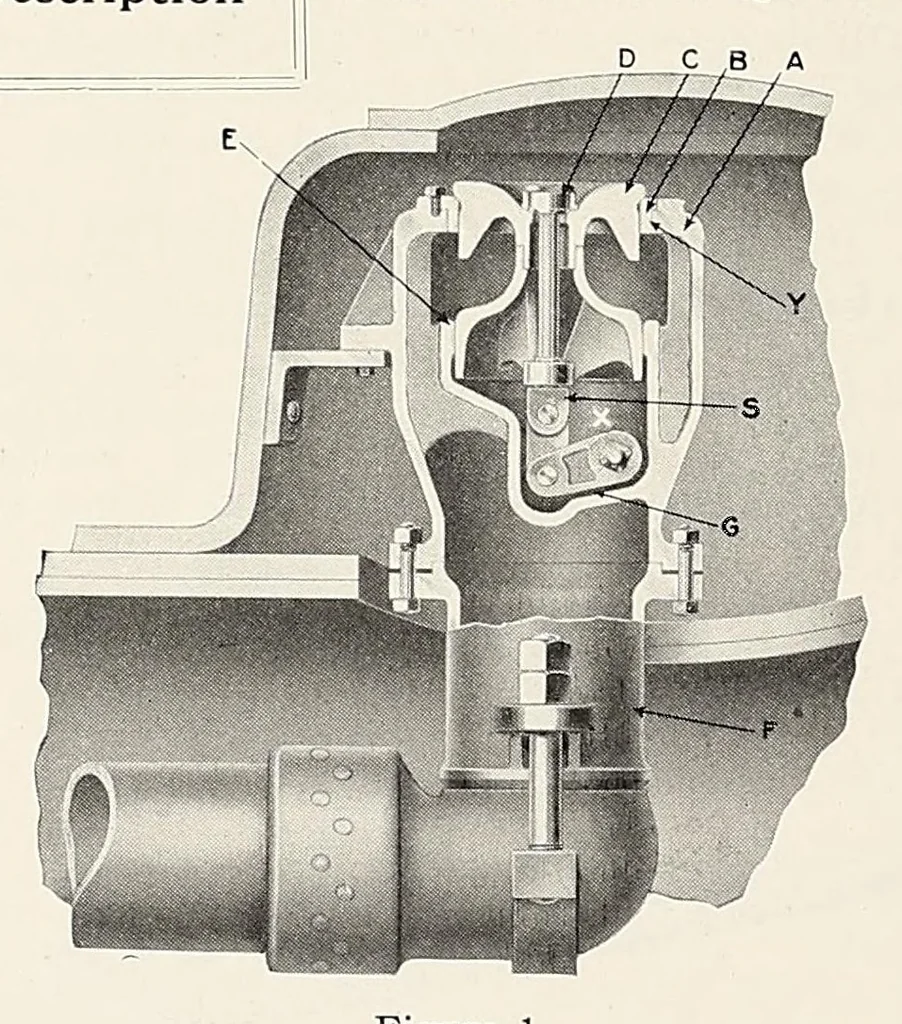

which will take all the steam at the highest point in the dome and in such a manner that it will not syphon water into the dry pipe and superheater units; a valve which need not be removed for internal boiler inspection and which all parts are standardized and interchangeable and readily accessible… … Figure 1 A — Throttle Box B — Removable Ring Seat C — Main Valve D — Balancing-drifting Valve E — Balancing Piston F — Distance Piece Figure 3 In the Throttle Box A, there is a Chamber X, which for convenience is called Balancing Chamber, in which the Balancing Piston operates. The Ring Seat B,…
