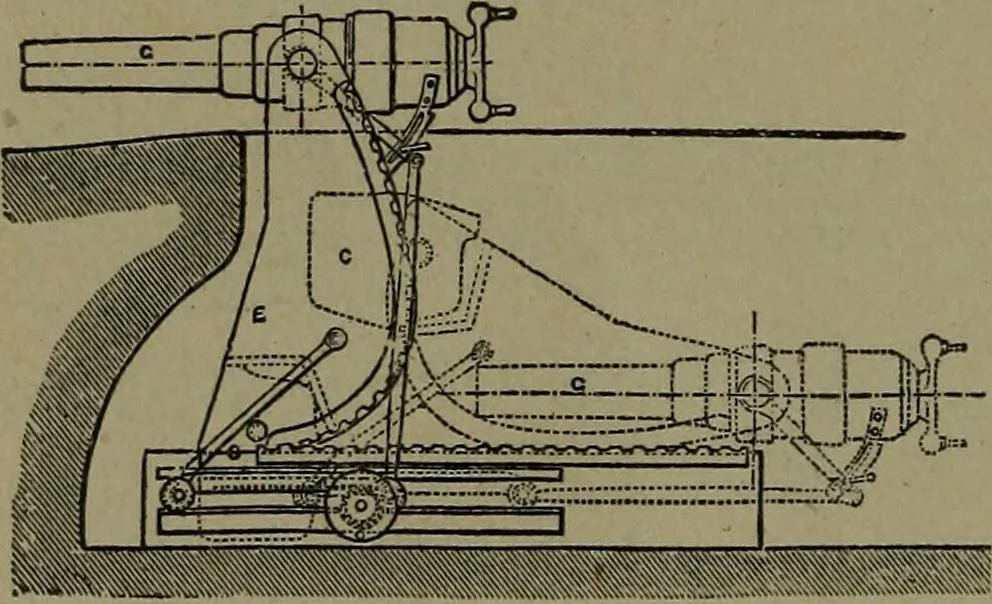

1649. DISAPPEARING GUN, Moncrief model. The cycloidalcurved rack arm E is counter-weighted, which balances the re- ^ coil of the gun by its increased ;^^.^—^—4.4..ig!|V|__4^__ igyerasre. The small connectmsr:=::^ Tod, rack, and pinion adjust theguns alignment.
