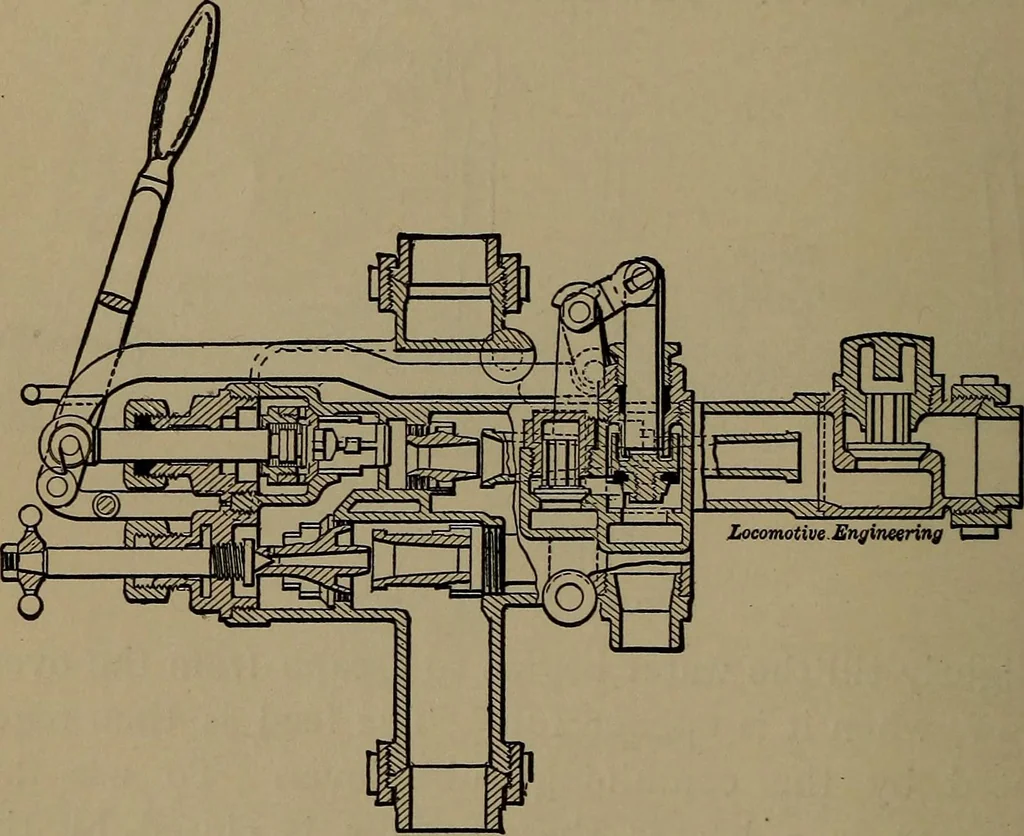

ange. This injector consists of two sets oftubes,—a set of lifting tubes, which lifts the waterand delivers it to the forcing set of tubes under pres- U4 LOCOMOTIVE ENGINE RUNNING. sure, which in turn forces the water into the boiler.The lifting set of tubes act as a governor to the forcingtubes,… … Fig. 5.—Metropolitan. admit of the capacity being regulated for light orheavy service under all conditions. The Metropolitan 1898 locomotive injector startswith 30 lbs. steam pressure, and without any adjust-ment of any kind will work at all steam pressures upto 300 lbs. ; in fact, at all steam…
