An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 127

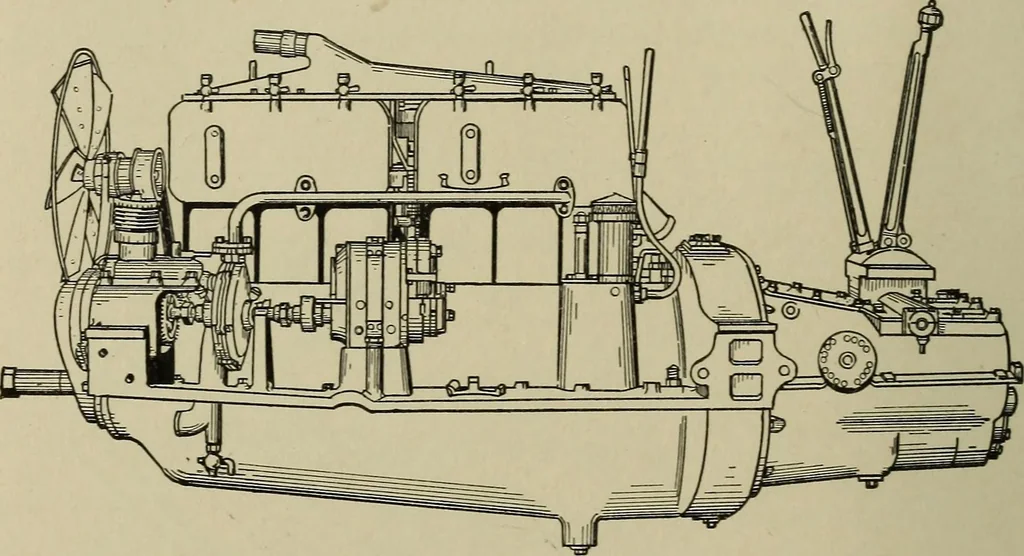

ion of the crankshaft are secured in the former and six im-pulses are delivered by the latter. These engines are extremely highspeed types in most cases. 281c. UNIT POWER PLANT FOR AUTOMOBILES. The unit power plant illustrated is an example of the arrangement of thegasoline engine when used for… … change speed gearing is mounted in an extension of the engine crankcase, which insures that all parts will be in line with the engine crank-shaft. An engine of this character is usually supported by threepoints only, one at the front and one on each side of the fly-wheelcase. This permits the frame…
